What’s Structure of Stabilized Soil Batching Plant

Jul 28, 2021

The stabilized soil mixing station now plays an important role in road construction. It has six major components, namely: aggregate feeding system, stabilizer feeding system, water supply system, mixing system, finished product transportation and storage system, control system and other parts.

The Aggregate system: It consists of aggregate bin, weighing system and feeding belt. The silos can be configured according to requirements, such as two silos, three silos, four silos, six silos, etc. A variety of aggregates can be configured. These are flexibly configured according to actual needs.

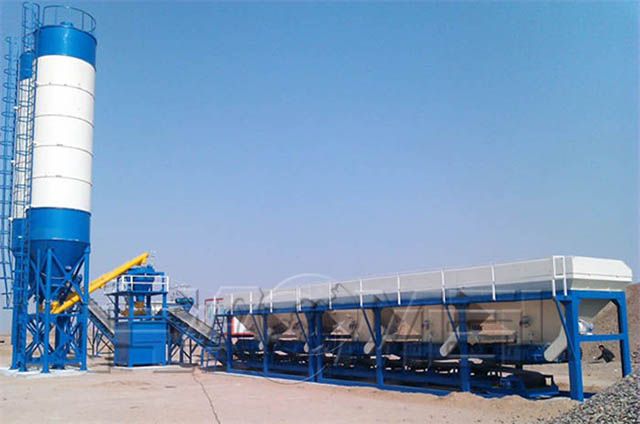

stabilized soil mixing station.jpg

The mixing system: It is of a twin-shaft compulsory mixer, featuring uniform mixing, high mixing efficiency and good mixing quality.

The stabilizer feeding system: It is used to store cement and lime powder and other materials, which are conveyed to the mixer through the conveying device and mixed with the aggregate at the same time.

Water supply system: A certain amount of water and additives need to be added during the mixing process.

Finished product storage system: After the mixer completes the mixing, the finished product is conveyed to the storage system through the conveyor. Then, the material is loaded into the transport vehicle through the discharge door of the storage system.

Control system: The control system can effectively manage and control each system.

The variable frequency speed regulation device of the stabilized soil mixing station is a key part during the whole production process. Different speeds can be used according to different processes, and energy saving can be achieved through frequency conversion speed regulation. Welcome to leave message below to inquire stabilized soil batching plant.
