How to Choose A Durable Concrete Plant Silo
May 08, 2025
In the construction industry, cement silos play a vital role as core equipment for storing bulk cement and other powdered materials. From material to structure, every detail is related to its performance and service life.
Raw material of cement silos
The material of the cement steel silo determines its strength, corrosion resistance and service life. The common cement silo materials on the market are mainly the following:
Ordinary carbon steel: This is the most commonly used material, with a relatively low price, good strength and rigidity, and can withstand large material pressure. However, ordinary carbon steel is prone to rust, especially in a humid environment, and requires regular anti-corrosion treatment, such as anti-rust paint.
Stainless steel: Cement silos made of stainless steel have excellent corrosion resistance, do not require frequent maintenance, and have a long service life. However, stainless steel is relatively expensive and is generally suitable for places with high requirements for material purity or in highly corrosive environments, such as coastal areas and construction sites near chemical parks.
Galvanized steel plate: Galvanized steel plate is a layer of zinc plated on the surface of ordinary steel plate, which greatly enhances the rust resistance of the steel plate. Its price is between ordinary carbon steel and stainless steel. While ensuring a certain strength, it has good corrosion resistance and is a cost-effective choice.
Structure of cement silo
The structural design of cement silo directly affects its performance and safety. It is mainly composed of the following parts:

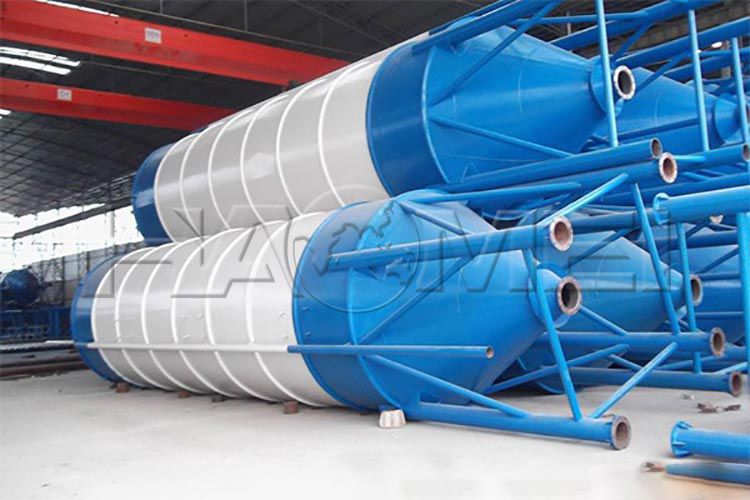

Main Body: The vertical cement silo is cylindrical and is the main space for storing materials. The height and diameter of the silo are designed according to actual needs. Generally, the higher the height, the greater the storage capacity. The thickness of the silo is also critical. A thicker silo can withstand greater pressure. Generally, the thickness of the silo is between 3 and 6 mm.
Silo roof: The silo roof is equipped with a dust collector and a pressure safety valve. The dust collector is used to filter the dust in the silo to ensure clean air in the silo and reduce environmental pollution; the pressure safety valve plays a role in balancing the pressure inside and outside the silo. When the pressure in the silo is too high, the safety valve automatically opens to prevent the silo from bursting.
Outriggers: Outriggers are the supporting structure of cement silos, transferring the weight of the silo to the ground. Outriggers are generally made of angle steel or round steel, and their number and size are determined according to the size and weight of the silo to ensure the stability of the cement silo.
Discharge system: The discharge system includes a discharge port and a screw conveyor. The discharge port is located at the bottom of the silo, and the material is transported from the silo to the designated location through the screw conveyor to realize the automatic discharge of the material.
How to choose a durable cement silo
Clearly define the use requirements: Determine the specifications and capacity of the cement silo according to the scale of the project and the amount of material storage. At the same time, consider the environmental conditions of the construction site, such as climate, terrain, etc., and choose suitable materials and structures.
Pay attention to the manufacturer: Choose a reputable and experienced manufacturer. Concrete plant silos produced by regular manufacturers have strict standards in raw material procurement, production process and quality inspection, which can ensure the quality of products and after-sales service.
Check product quality: When selecting a concrete plant silo, carefully check the welding quality of the silo. The welds should be even and firm, without any false welds or leaks. Observe whether the surface of the silo is flat, deformed, or sunken. Check whether the dust collector and pressure safety valve on the top of the silo are firmly installed and can work properly.
Compare prices: Price is one of the factors to consider when choosing a cement silo, but you can’t just look at the price. Too low a price may mean that there are quality problems with the product or that inferior raw materials are used. When comparing prices, you should also consider the product’s quality, performance, and after-sales service, and choose a cement silo with a high cost-effectiveness.
