Top Ten Big Systems of Self Loading Transit Mixer

Apr 20, 2020

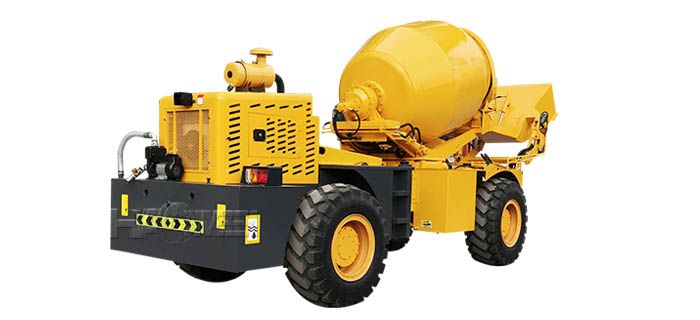

The self loading transit mixer is a popular construction equipment in recent years. It combines self loading, weighing, mixing, transport and discharging in one. Four wheel drive and 270 degree discharging enables it go anywhere. Why is it so powerful? Let’s have a look of its systems.

self loading concrete mixer factory.jpg

1. Chassis

It is the main part of the self mixing concrete truck. The transportation of the entire self mixer is realized by the chassis.

2. Supporting wheel system

It is a connection part of the auxiliary frame with the rear part of the mixing drum. Its function is to support the roller body.

3. Mixing tank

The mixing tank is the key part of the entire self mixing concrete truck and the the container for storing concrete, which plays a decisive role in preventing the solidification and segregation of concrete. There are blades inside the tank mainly serving the function of mixing and discharging.

4. Discharging system

It is mainly composed of main discharge trough, auxiliary discharge trough, locking bar, etc. The extend chute contributes accurate pouring of the concrete.

5. Circuit system

It refers to the whole circuit system including the taillights of the vehicle, side sign lights, gallery lights, cooling fans,etc.

6. Sub-frame

It is the main load-bearing part, and almost all the load during operation is supported by it and transmitted to the chassis. It also plays a role in alleviating the impact load caused by road bumps and deceleration.

7. Operating system

The operating system is made up of a controller, a linkage shaft, a flexible shaft and a connecting rod mechanism, which mainly controls the speed and rotation direction of the mixing drum.

8. Hydraulic system

The engine power taken out by the power take-off is converted into hydraulic energy (displacement and pressure), and then output by the motor as mechanical energy (speed and torque) to provide power for the rotation of the mixing drum.

9. Feeding system

It consists of self loading concrete mixer machine factory a feeding hopper and a bracket. As a wearing part due to the feeding impact, it requires good wear resistance. The bracket mainly serves to reduce the impact force.

10. Cleaning system

The cleaning system of is made up of pressure water tank, water gun, water pipe and valve. Its main function is to flush the hopper after loading and flush the mixing drum and discharge tank after discharging to prevent the concrete from sticking.
