Different Units of Measurement of Concrete Mixer Volume
Oct 21, 2025
In concrete construction, concrete mixer volume is a key parameter for selecting equipment and calculating material usage. However, the commonly used volume units vary significantly across regions and construction phases.

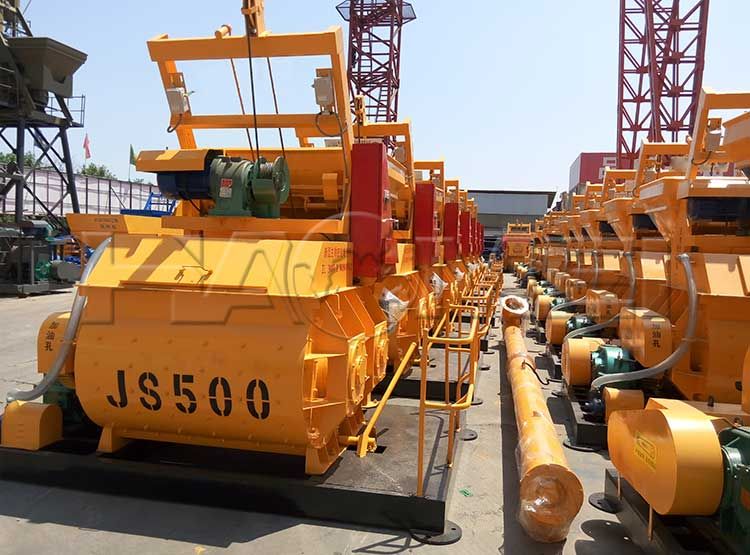

For example, some regions use "liters (L)" and "cubic meters (m³)," while others may use "cubic yards (yd³)" and "cubic feet." Construction sites also often estimate concrete usage in bags. Today, using a common 500L twin shaft concrete mixer as an example, we'll systematically explain the conversion logic for volume units and resolve unit confusion in practical construction.
1. Relationship between 500L and cubic meters (m³)
According to the International System of Units (SI), 1 cubic meter (m³) = 1000 liters (L), or 1L = 0.001m³. So, for a 500L concrete mixer, the calculation to convert its capacity to cubic meters is:
500L × 0.001m³/L = 0.5m³
2. How many cubic yards (yd³) are equivalent to 500L?
1 cubic yard (yd³) ≈ 0.7646 cubic meters (m³) (This conversion factor is an industry-standard approximation and should be calculated to four decimal places for accuracy).
Given that 500L = 0.5m³, the formula for converting to cubic yards is:
0.5m³ ÷ 0.7646m³/yd³ ≈ 0.654yd³
Simply put, a 500L concrete mixer has a volume of approximately 0.65 cubic yards. This value is very useful when working with overseas projects or purchasing imported parts, helping us quickly match equipment specifications.
3. How many cubic feet are equivalent to 500L?
The cubic foot (ft³) is a commonly used unit of volume in the Imperial system. 1 cubic meter = (3.2808 ft³) ≈ 35.3147 cubic feet. Considering 500L = 0.5m³, the specific conversion process is:
0.5m³ × 35.3147 ft³/m³ ≈ 17.66 ft³
In other words, the volume of a 500L sicoma concrete mixer is approximately equal to 17.66 cubic feet. Mastering this conversion relationship will help you navigate occasional Imperial unit scenarios and ensure you accurately understand volume parameters across various projects.
4. How many bags of concrete can a 500L concrete mixer mix at once?
On construction sites, people are most concerned about how many bags of cement-based concrete a 500L concrete mixer can mix at once. This number is calculated based on the concrete mix ratio. The industry generally uses a 50kg cement bag as the default standard (some small packages are 25kg, which needs to be adjusted based on actual conditions). The commonly used concrete mix ratio is approximately 1:3:0.5 by volume for cement, sand, gravel, and water (the mix ratio varies slightly for different strength grades; this approximate value is used for C30 concrete).
First, the total volume of dry concrete materials (cement + sand and gravel) accounts for approximately 80% of the mixer's rated capacity (allowing for room to allow for mixing and avoid spillage). Therefore, the volume of dry materials that can be loaded into a 500L mixer at one time is approximately:
500L × 80% = 400L = 0.4m³
Based on the mix ratio, the ratio of cement volume to total dry material volume is: 1 ÷ (1 + 3) = 1/4 (ignoring the effect of water volume on the dry material ratio). Therefore, the volume of cement required per batch is:
0.4m³ × 1/4 = 0.1m³
The density of cement is approximately 1300kg/m³, so the mass of cement required per batch is:
0.1m³ × 1300kg/m³ = 130kg
Assuming each bag of cement weighs 50kg, the number of bags of cement that can be mixed at one time is:
130kg ÷ 50kg / bag = 2.6 bags ≈ 2-3 bags
In actual construction, for ease of operation, round numbers are often used. For example, a 500L mixer can mix 2-3 50kg bags of cement at a time (the specific number of bags needs to be adjusted based on the mix ratio. For example, if using 25kg small packages of cement, the equivalent number is 4-6 bags). This number can directly guide on-site material preparation, avoiding cement waste or insufficient mixing.
