JS500 Twin Shaft Concrete Mixer

Discharging Volume:
500 L
Charging Volume:
750 L
Mixing Capacity:
0.5 m3
Aggregate Size:
 60/80
Working Circle:
60 s

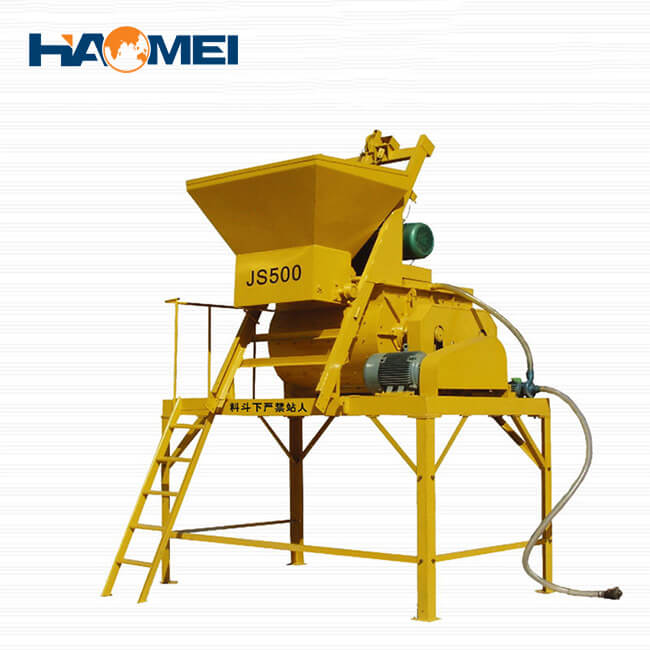

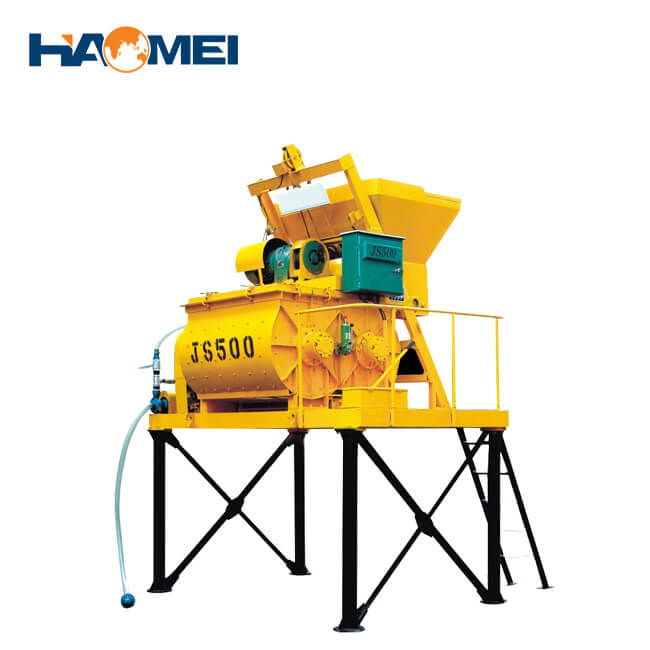

What Is JS500 Concrete Mixer

JS500 concrete mixer is a compulsory twin shaft concrete mixer. This mixer is applicable to make hard concrete, quaking concrete, fluidity concrete, light weight aggregate concrete. It can be used independently or combined with PLD series batching machine to form a single concrete batching plant.

Features of JS500 Concrete Mixer Machine

  • Popular mixer model with excellent mixing performance.

  • Super stability with support legs of proper height.

  • The blades and liner of mixing drum is of quality steel.

  • Multiple protection devices.

  • Shaft-end sealing technology for no leakage.

  • Great flexibility. It can be use singly or combined with batcher, mixer truck,etc.

  • Wide application. It is applicable to small, medium or large prefabricated components plants and construction sites.

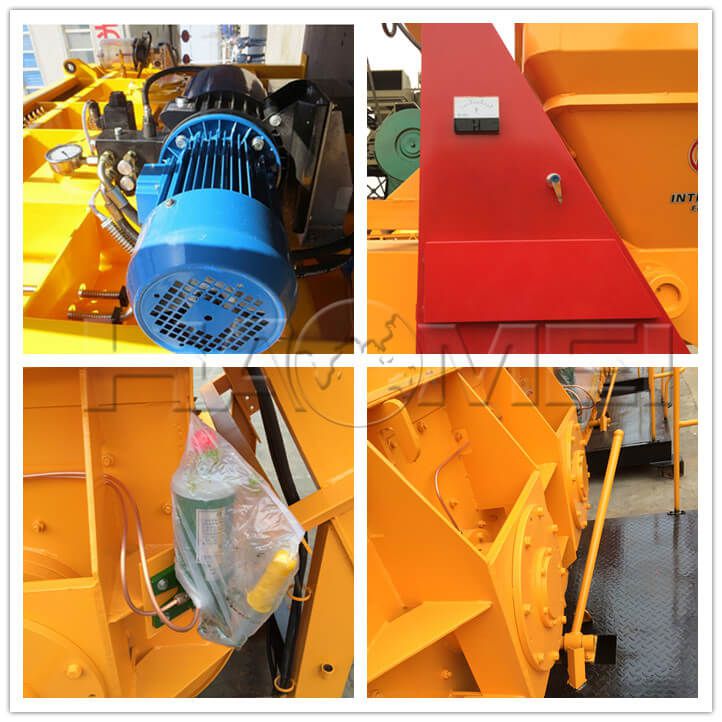

JS 500 concrete mixer parts.jpg

The Technical Parameter of JS500 Concrete Mixers

Specification

Unit

Value

Discharging Volume

L

500

Charging Volume

L

750

Mixing Capacity

m3

0.5

Aggregate Size

mm

60/80

Working Circle

sec

60

Mixer Motor Power

kw

18.5

Lifting Motor Power

kw

5.5

Pump Motor Power

kw

0.75

Weight

kg

3000

Dimensions

mm

3030x2200x2680
