Sicoma Twin Shaft Mixer

Discharging Volume:
2000-4000 L
Charging Volume:
3000-6000 L
Mixer Capacity:
2-4 m3
Aggregate Size:
60/80 mm
Working Circle :
60 s

What Is Sicoma Twin Shaft Mixer

Sicoma twin shaft mixer is renowned for its advanced design. The excellent performance makes it popular in the concrete industry as well as industrial Plants (waste treatment, chemical industry, glass industry). The capacity is 2.0-4.0 m3/batch. Each batch take 40-45 seconds.

SICOMA concrete plant drawing.jpg

Features of Sicoma Concrete Mixer

  • High mixing uniformity and mixing quality. The powerful compulsory spiral mixing action throws particles from each side of the mixer towards the center where they combine.

  • Durability. The outer 70% of the lined surface is rarely touched by concrete.

  • Super stability. Unique monitoring system to monitor the running conditions of gearbox, hydraulic door opening and lubrication pump.

  • Multiple pipes water spraying system to ensure fast and thorough mixing.

  • Temperature Humidity Tester gives highly accurate dynamic material temperature and humidity.

  • High pressure cleaning system.

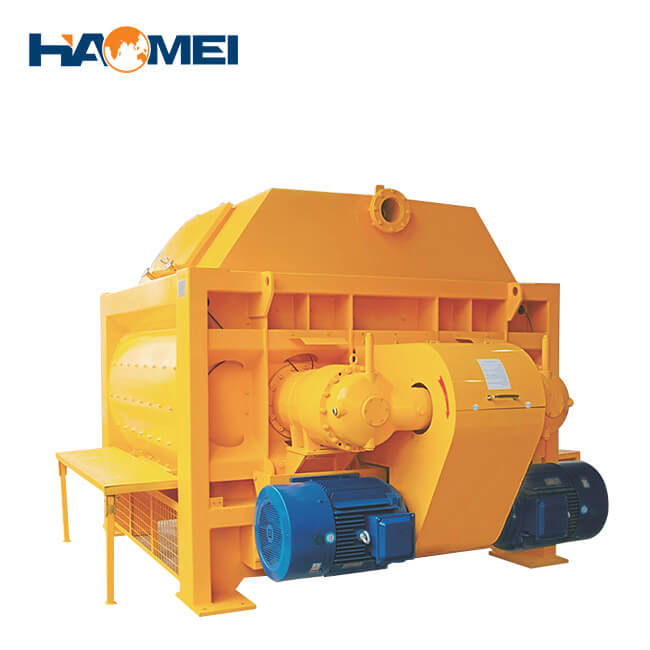

sicoma concrete mixer.jpg

The Specification of Sicoma Twin Shaft Mixer For Sale

Specification

Unit

Value(2.0m3)

Value(3.0m3)

Value(40.m3)

Discharging Volume

L

2000

3000

4000

Charging Volume

L

3000

4500

6000

Mixer Capacity

m3

2

3

4

Lubrication System

Brand

optional

optional

optional

Reducer

Brand

optional

optional

BONFIGLIOLI

Aggregate Size

mm

60/80

60/80

60/80

Aggregate Category

Quantity

4

4

4

Working Circle

s

60

60

60

Mixer Motor Power

kw

2x37

2x55

2x75

Mixing Speed

r/min

35.5

35.5

31.5

Mixing Blade

Quantity

2x8

2x9

2x11

Lifting Motor Power

kw

21

25

28

Pump Motor Power

kw

3

3

3

Weight

kg

75

9200

11800

Dimensions

mm

2400x3500x2175

2680x3830x2175

2680x4435x2175
