Planetary Cement Mixer
Mar 03, 2026

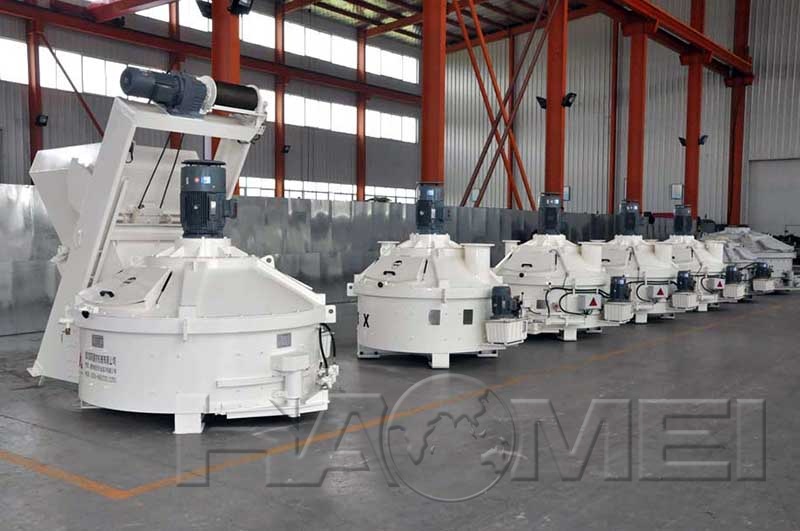

Planetary Cement Mixer: What It Is and How It Mixes
A planetary cement mixer is a vertical-shaft pan mixer designed to produce highly uniform mortar or concrete in a short time. It uses one or more mixing stars that rotate on their own axis while simultaneously orbiting around the center of the pan. This dual motion, combined with fixed scrapers, continuously moves material from the wall to the center and back, reducing dead zones.
In practice, this mixing pattern is valued when consistency matters more than sheer volume, for example in precast elements, colored concrete, fiber-reinforced mixes, repair mortars, refractory mixes, and high-performance concrete where dispersion quality is critical. Compared with drum mixers, the pan design also makes it easier to visually inspect the mix and to control the discharge.
What makes the planetary mixing action different
Most conventional mixers rely on material tumbling or being pushed around a fixed path. A planetary system is closer to a controlled kneading and folding process:
Full-pan coverage: The orbiting motion sweeps the entire pan, while scrapers prevent buildup at the wall.
High shear where needed: The rotating stars create localized shear that helps break up agglomerates and wet powders evenly.
Good additive dispersion: Pigments, micro-silica, fibers, and chemical admixtures tend to distribute more reliably when the mixer eliminates stagnant pockets.

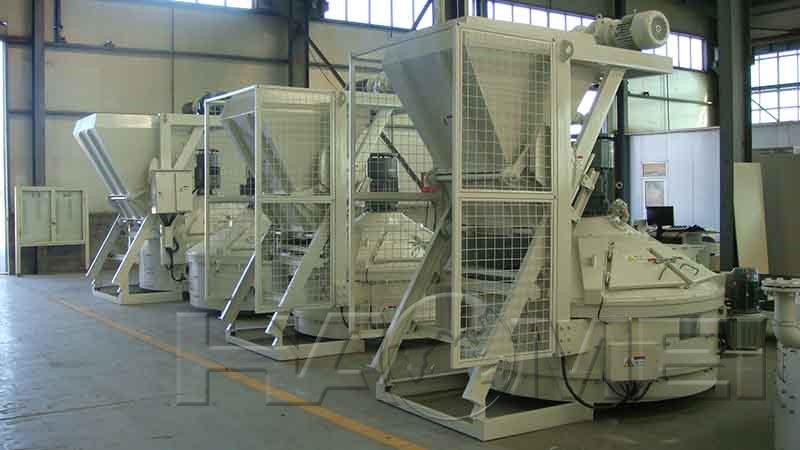

This is also why planetary units are often discussed alongside the counter-current concrete mixer concept, where the tool motion and material flow oppose each other to intensify mixing.
Strengths, Limitations, and Typical Applications
Selecting equipment is easier when you match mixer behavior to job requirements.
Strengths you can expect on site
Uniformity and repeatability: Ideal for production lines where batch-to-batch variation causes costly rejects.
Short mixing cycles: Many mixes reach target consistency quickly because the entire pan is actively worked.
Handles challenging recipes: Low-slump mixes, fiber dosing, and mixes with high fines content often perform well.
Service access: With the pan open at the top, wear parts such as paddles and scrapers can be inspected routinely.

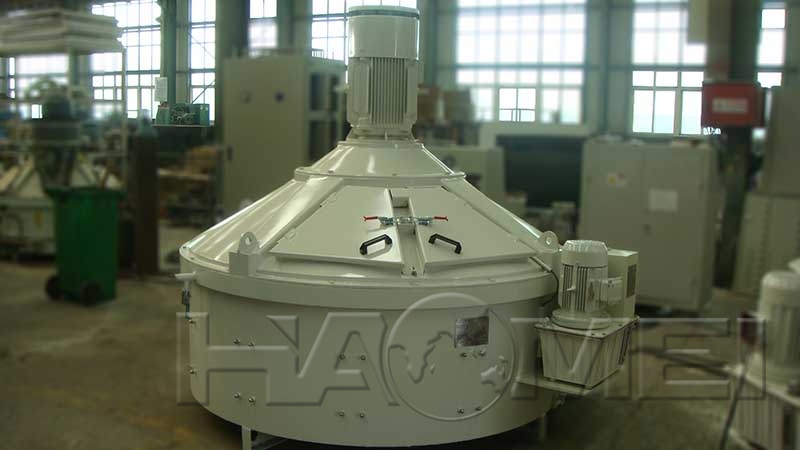

If your project involves frequent product changes, a planetary system can also reduce the risk of cross-contamination, since the mix chamber is accessible for cleaning. For teams comparing models and configurations, the product page for Planetary Concrete Mixer for Sale can be a useful reference point for typical layouts.
Limitations to plan for
Wear and maintenance: High shear and hard aggregates increase wear on paddles, scrapers, and pan liners. Stocking spares and scheduling inspection is important.
Energy and torque demand: Dense, low-water mixes can require higher installed power and robust drive components.
Not always the best for very high throughput: Large continuous ready-mix operations may prefer twin-shaft designs that excel at high-volume cycles.
Space and integration: Discharge height, skip hoist or conveyor feeding, and dust control must match your batching plant layout.
Common applications where it fits well
Precast plants producing blocks, pipes, pavers, segments, and architectural elements.
Refractory castables and heat-resistant mixes.
Repair mortars, grouts, and dry-mix mortar lines.
Colored concrete or mixes with tight aesthetic tolerances.
How to Choose the Right Mixer for Your Project
The right choice depends on material, quality targets, and production rhythm. The table below compares common mixer types used in concrete and mortar production.
| Mixer type | Best for | Strengths | Watch-outs | Typical production style |
|---|---|---|---|---|
| Planetary pan mixer | Precast, mortars, specialty mixes | Excellent homogeneity, strong dispersion, easy visual control | Higher wear in abrasive mixes, not always the fastest for very large batches | Batch, often automated lines |
| Twin-shaft mixer | Ready-mix plants, high output precast | Very fast mixing, high throughput, strong for harsh concrete | Larger footprint, heavier maintenance events | High-output batch |
| Drum mixer | General site concrete | Simple and economical, tolerant of variable feeding | Less uniform for specialty mixes, longer cycles | Small to medium batch |
| Standard pan mixer (non-planetary) | Basic mortars, small precast | Simple pan design, easier service | More dead zones than planetary, may struggle with demanding recipes | Batch |
Selection checkpoints that prevent costly mismatches
Material behavior: Low slump, high fines, or fiber content typically benefits from planetary mixing. Very harsh mixes may require upgraded liners and wear packages.
Batch size and cycle time: Define required cubic meters per hour, then verify rated output at your actual slump, not a lab ideal.
Discharge method: Bottom discharge is common for pan mixers. Confirm gate sealing and discharge speed if you run short cycles.
Automation and weighing: Mixing quality depends on accurate water and admixture dosing. Make sure the mixer integrates cleanly with your batching controls.
Maintenance access and spares: Ask about paddle life, liner options, and whether components are reversible to extend service intervals.
For many contractors, the selection starts broader: identify the correct Concrete Mixer category for your application, then narrow down based on uniformity needs and plant throughput.
Practical sizing tips
If your recipe uses fibers or pigments, prioritize mixers known for thorough dispersion, then confirm that the pan volume and motor torque handle your densest mix.
If your priority is maximum hourly output with standard structural concrete, compare twin-shaft and planetary options on verified cycle times, including charging and discharge.
If you expect frequent recipe changes, favor designs that are easier to clean and inspect between batches.
A well-matched planetary unit helps deliver consistent strength, finish, and workability, especially in precast and specialty concrete production where uniformity is a measurable competitive advantage.
