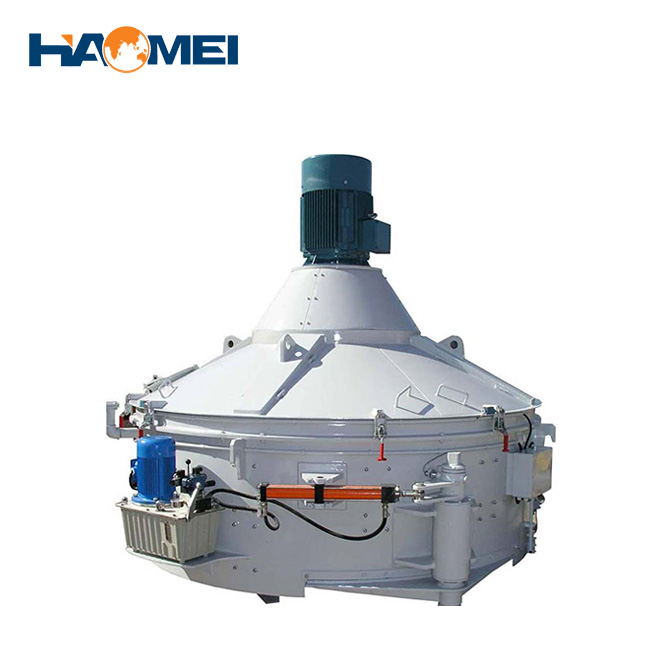

Planetary Concrete Mixer for Sale

Discharging Volume:
330-3000 L
Charging Volume:
500-4500 L
Charging Weight :
800-7200 kg
Diameter of Mixing Drum:
1540-3400 mm
Mixing Power :
15-110 kw

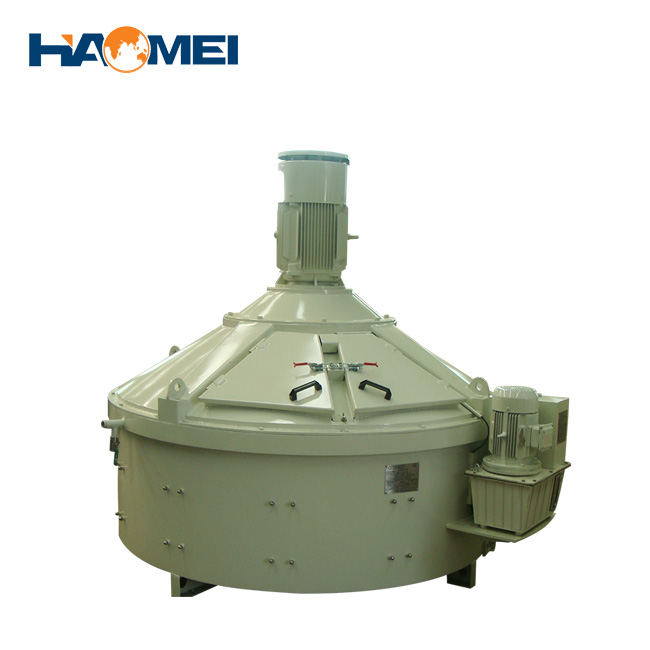

What is Planetary Concrete Mixer

Planetary concrete mixer, also called counter-current mixers, is a new-type equipment. When the concrete planetary mixer mixes the materials, the multilevel blade do the rotation and revolution movement at the same time, which can mix materials evenly and makes it easy to scrape material sticking on the inwall.

Planetary Concrete Mixer Components

1. Reduction gearbox: The gearbox unit, specially designed for balanced distribution of power to the various mixing device, which ensures a high efficiency and low noise rotation.

2. Maintenance Access: The large access facility is easy for people to maintain and clear.

3. Safety Design: The key-operated safety switch guarantee the motor can not be powered with cover open.

4. Hydraulic Unit:Hydraulic unit equipped with manual pump allow the door to be open in case of electric failure.

5. Discharging Door: The discharging door can be opened in any angle. Maximum three discharging doors are available.

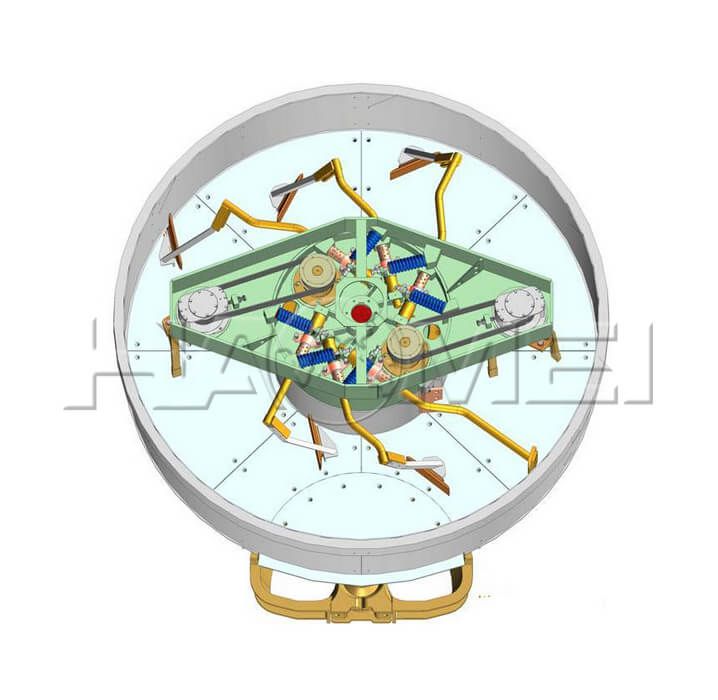

Planetary concrete mixer drawings.jpg

Features of Concrete Planetary Mixer

  • High Production. We have three models, the capacity of one minute is 0.5 m3-2.0 m3.

  • High mixing uniformity and mixing quality. The material is fully mixed under the planetary motion of the mixing arms.

  • Long service life. There is no direct contact between the concrete and the transmission part, so there is no wear and seal of the main shaft end.

  • Easy to maintain and clean because of its reasonable structure.

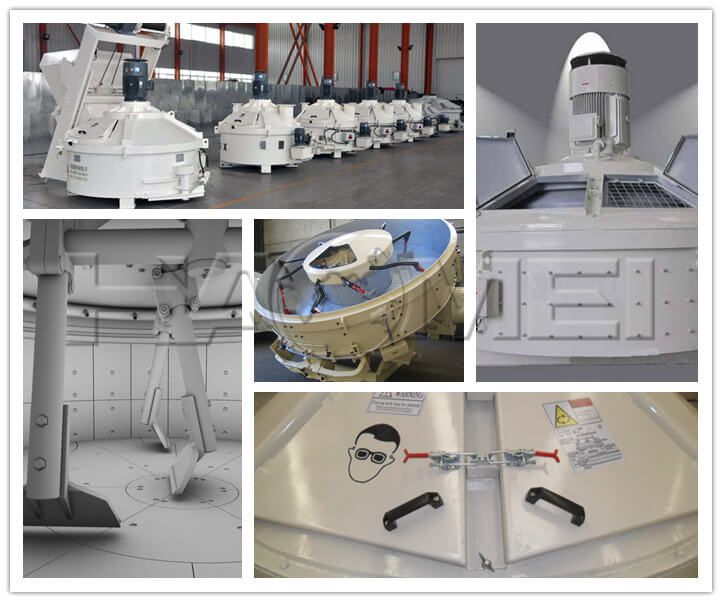

Planetary concrete mixer.jpg

The Main Technical Parameter of Counter-current Mixer

Item

Model

JN330

JN500

JN750

JN1000

JN1500

JN2000

JN2500

JN3000

Discharging Volume (L)

330

500

750

1000

1500

2000

2500

3000

Charging Volume (L)

500

750

1125

1500

2250

3000

3750

4500

Charging Weight (KG)

800

1200

1800

2400

3600

4800

6000

7200

Diameter of Mixing Drum (mm)

1540

1900

2196

2496

2796

3100

3400

3400

Mixing Power (KW)

15

18.5

30

37

55

75

90

110

Discharging Power (KW)

2.2

2.2

2.2

3

3

4

4

4

Weight (KG)

1700

2000

3500

6000

7000

8500

10500

11000

Dimension (LxWxH) mm

1910x1590

x1747

2270x1955

x1832

2520x2280

x2150

2858x2590

x2370

3250x2916

x2530

3424x3217

x2790

3690x3528

x2790

3690x3528

x3070

Lifting Power (KW)

4

4

7.5

11

15

18.5

/

/

Bucket Capacity (L)

580

870

1300

1740

2610

3480

/

/

Bucket Capacity (KG)

870

1305

1950

2610

3915

5220

/

/

Lifting Speed (m/s)

0.25

0.25

0.25

0.25

0.25

0.25

/

/
