Truck Mounted Concrete Pump For Sale

:

What Is Truck Mounted Line Pump

Homei truck mounted concrete pump for sale is a kind of line pump installed on the chassis of a truck. More mobile than a trailer pump and more affordable than a large boom pump, they can nevertheless handle the harshest of mixes. We also have truck mounted concrete boom pump.

The Main Advantages of Truck Mounted Concrete Pumps

1. Adopting the special chassis for FAW JIEFANG-brand heavy-duty truck, which is low in oil consumption and reliable and durable in performance.

2. The power system which adopts the world-famous 6-cylinder DACHAI-DETUZ diesel engine has stable and reliable performance.

3. The hydraulic system adopts the German REXROTH oil pump and the American VICKERS control valve, which match perfectly and have higher efficiency.

4. The main electric components of the PLC computer control system are brand products made by SIEMENS, LG, SCHNEIDER and so on.

5. All operations can be carried out by short-distance control and wired remote control. There are two separate operating devices, ensure the reliability and safety of the equipment.

6. A basic guarantee: 20,000 m³of concrete can be successfully pumped without any problems.

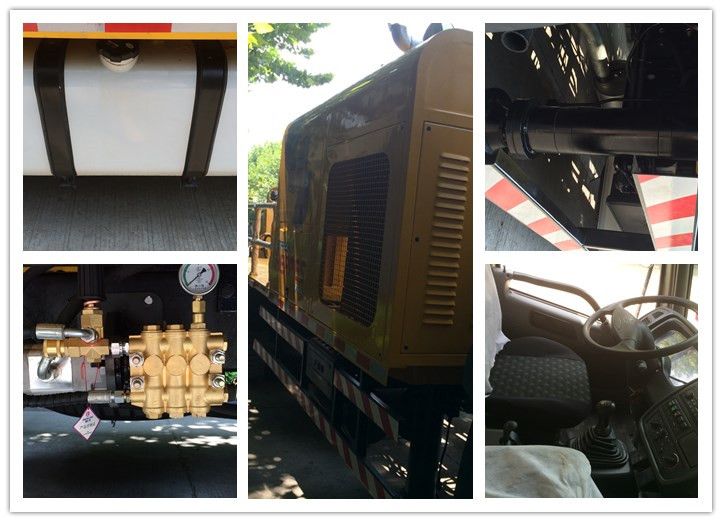

truck mounted line pump show.jpg

The Main Technical Parameter of Truck Mounted Line Pump

220090

Item

HDT5120THB Truck Mounted Line Pump

Unit or model

Parameters

General

Parameter

Type

Horizontal single acting biserial hydraulic piston type

Distribution valve

“S”pipe valve

Delivery pressure of concrete in theory

High pressure small displacement

MPa

12

Low pressure large displacement


8

Delivery capacity of concrete in theory

High pressure small displacement

M³/h

52

Low pressure large displacement


90

Max. delivery distance in theory

Pipe 150mm

m

horizontal1100 , r vertical 220

Pipe 125mm

m

horizontal900 , r vertical 200

Max. aggregate dimension

Pipe 150mm

mm

50

Pipe 125mm

mm

40

Delivery cylinder diameter * Max. stroke

mm

φ230×1600

Hopper volume/ feeding height

M³/mm

0.7/1330

Power

system

Diesel Engine

BF6M1013CEP

Rated Power 161KW

Main oil pump

A11VL0-190

Max. Flow Rate 405L/min

Maximum S peed

r/min


Idling

r/min

800

Diesel Oil Tank Volume

L

200

Diesel Oil

Choose with Season

Flow content <0.5%

Engine Lubricating Oil

Grade AP I

CD

Hydraulic

System

Pumping & Distributing System Oil Pressure

MPa

32

Mixing System Oil Pressure

MPa

12

Hydraulic Oil Tank Volume

L

580

Hydraulic Oil


Great Wall AW46# wearing hydraulic oil
Chassis

Chassis Model


FAW CA1120PK2L2EA80

Engine Model

BF4M-1013-16E3

124KW

Emission Standard


Ⅲ Euro III

Wheel Base

mm

4700

Max. Speed

km/h


Others

Max. Outrigger Reaction

t

10.178

Outline dimension: L*W*H

mm

9000×2490×3000

Total Weight

kg

12000
