YHZS35 Mobile Concrete Batching Plant for Sale

Productivity:
35 m3/h
Overall Power:
70 kw
Discharge Height:
3.8 m
Overall Weight:
17 t
Trail speed:
≤40 km/h

What Is YHZS35 Mobile Concrete Batching Plant

YHZS35 Mobile Concrete plant is a completely portable, productive, reliable, and cost effective piece of equipment used to produce batches of concrete at most any location. All its parts are installed on a transport chassis. The productivity of 35m3/h is a popular choice for small projects.

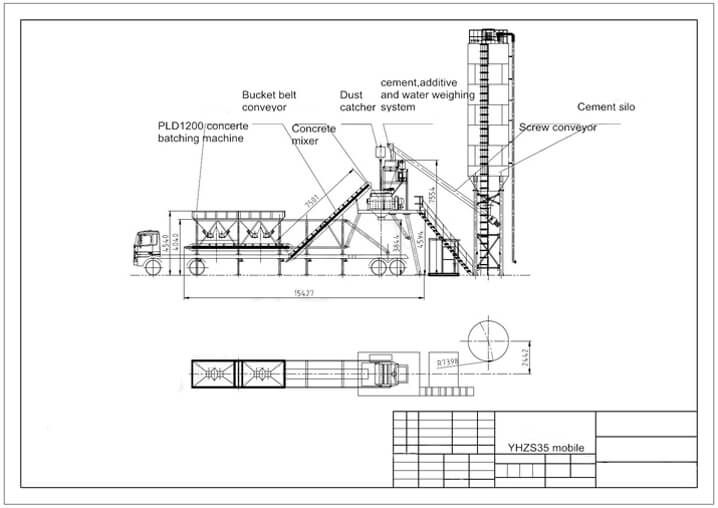

YHZS 35 mobile batching plant.jpg

Features of YHZS35 Mobile Batching Plant

  • Set up only take 4-5 hours or less.

  • Foundation is not needed in most cases.

  • Feeding, weighing, conveying, mixer, discharging system and other accessories are assembled on steel frame.

  • We choose powerful mixer-twin shaft concrete mix JS750 for this series.

  • Dust collector is optional without extra freight cost.

  • All parts tested at our factory to ensure trouble free installation and operation.

YHZS concrete plant details.jpg

The Technical Parameter of YHZS35Mobile Concrete Batching Plant for Sale

Specification

Unit

Value

Productivity

m3/h

35

Weighing scale Concrete

kg

2500

Weighing scale Cement

kg

600

Weighing Scale Water

kg

300

Weighing Scale Liquid Additive

kg

20

Overall Power

kw

About 70

Power Source

V/ HZ

380/50

Discharge Height

m

3.8

Overall Weight

t

17(cement silo not included)

Trail speed

km/h

≤40

Specification(LxWxH) During work

m

17.3x3.4x7.4

During transportation

m

17x2.4x4.3
