YHZS 25 Mobile Concrete Plant

Productivity:
25 m3/h
Overall Power:
55 kw
Trail speed:
≤40 km/h
Discharge Height:
3.8 m
Overall Weight:
13 t

What Is YHZS 25 Mobile Concrete Plant

YHZS25 mobile concrete plant is an all-in-one concrete plant. All the necessary parts are installed on a transport chassis. It only takes 4-5 hours to install from one place to another, and can get to run without debugging.

By absorbing new technologies from overseas and domestic, the mobile concrete batching plant has such characteristics as accurate weighing, even and efficient mixing, fast and clean delivery,etc.

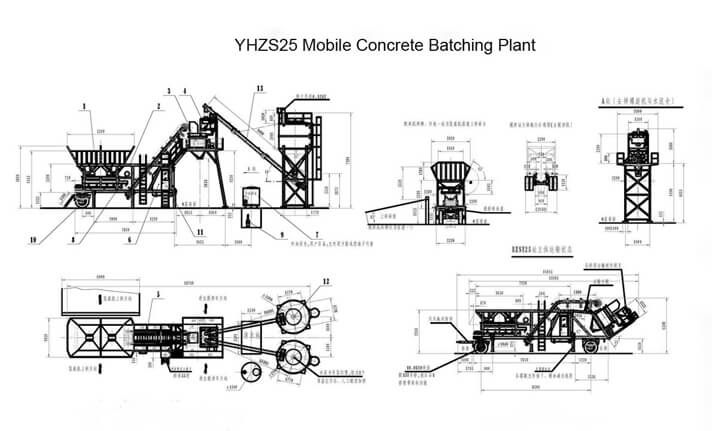

drawings of Yhzs 25 concrete plant.jpg

Features of Mobile Concrete Batch Plant

  • Reasonable design: all is installed on a transport chassis, which is convenient to transport.

  • Premier key parts: We choose twin shaft compulsory concrete mixer, bringing you fast mixing speed and quality concrete.

  • Minimum installation time: It only take 4-5 hours to install and start to work.

  • Four “Less”: Less transportation cost, less foundation cost, less installation area,less installation and maintenance cost.


How Does Potable Batch Plant Work

The Technical Parameter of YHZS 25 Portable Concrete Batch Plant

Specification

Unit

Value

Productivity

m3/h

25

Weighing scale Concrete

kg

2000

Weighing scale Cement

kg

510

Weighing Scale Water

kg

150

Weighing Scale Liquid Additive

kg

15

Overall Power

kw

About 55

Power Source

V/ HZ

380/50

Discharge Height

m

3.8

Overall Weight

t

13(cement silo not included)

Trail speed

km/h

≤40

Specification(LxWxH) During work

m

17x3.6x8.2

During transportation

m

17.6x2.4x4.35

Original source: https://www.concretebatchplanthm.com/product/yhzs-25-mobile-concrete-plant.html
