YHZS60 Mobile Mixing Plant

Productivity:
60 m3/h
Overall Power:
85 kw
Discharge Height:
3.8 m
Overall Weight:
21 t
Trail speed:
≤40 km/h

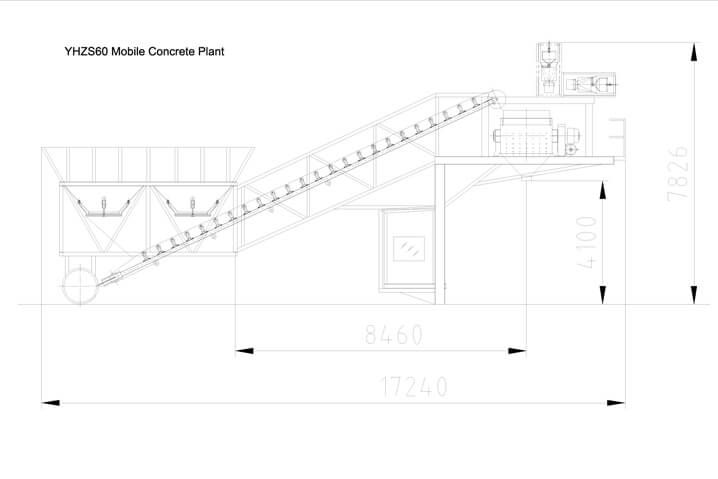

What Is YHZS60 Mobile Mixing Plant

YHZS60 mobile mixing plant is the most time efficient and cost-effective fully mobile concrete batch plant available today. All the parts are installed on a transport chassis. At the job site, it can be operational in less than 4 hours.

YHZS60 portable  batching plant (3).jpgFeatures of YHZS60 Mini Mobile Batching Plant

  • Adopt JS1000 twin shaft concrete mixer, bringing better mixing quality.

  • Plant is completely erected and tested at the factory prior to shipping.

  • Belt type conveyor system contributes to higher efficiency of the whole plant.

  • Foundation is not needed in most cases.

  • Four “Less”: Less transportation cost, less foundation cost, less installation area,less installation and maintenance cost.

YHZS60 portable  batching plant (2).jpg

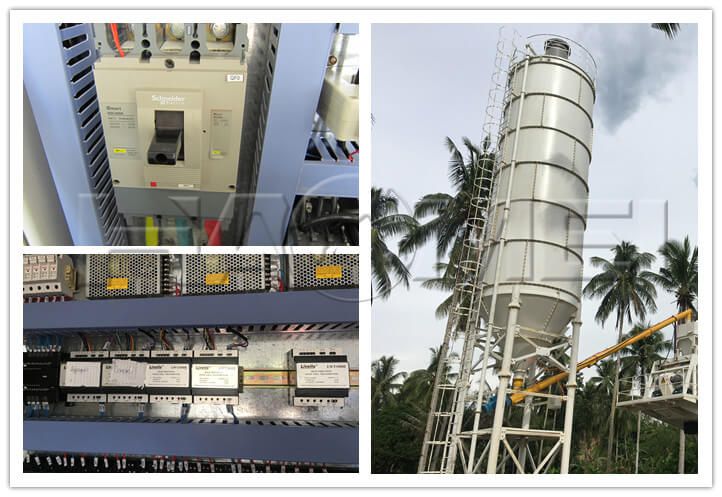

The Installation of YHZS 60 Mobile Mixing Plant in Philippines

The Technical Parameter of YHZS60 Mobile Concrete Batch Plant

Specification

Unit

Value

Productivity

m3/h

60

Weighing scale Concrete

kg

3000

Weighing scale Cement

kg

720

Weighing Scale Water

kg

360

Weighing Scale Liquid Additive

kg

36

Overall Power

kw

About 85

Power Source

V/ HZ

380/50

Discharge Height

m

3.8

Overall Weight

t

21(cement silo not included)

Trail speed

km/h

≤40

Specification(LxWxH) During work

m

17x3.6x8.2

During transportation

m

17.6x2.4x4.35
