JS1500 Twin Shaft Mixer

Discharging Volume:
1500 L
Charging Volume:
2400 L
Mixing Capacity:
1.5 m3
Aggregate Size:
 60/80 mm
Working Circle:
 60 s

What Is JS1500 Twin Shaft Mixer

Because of discharging 1.5 square per hour, JS1500 twin shaft mixer is also called 1.5 square compulsory concrete mixer. It combines new technologies at home and abroad like SICOMA. It can be operated independently and often used as the key part of HZS75/HZS90 concrete mixing plant.

Features of JS1500 Sicoma Twin Shaft Mixer

  • It is of reasonable structure, innovative layout, ease of use and maintenance.

  • It can make various concretes including dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete, motor,etc.

  • Less energy consumption and low noise.

  • Shaft-end sealing technology for no leakage.

  • Multiple safety design.

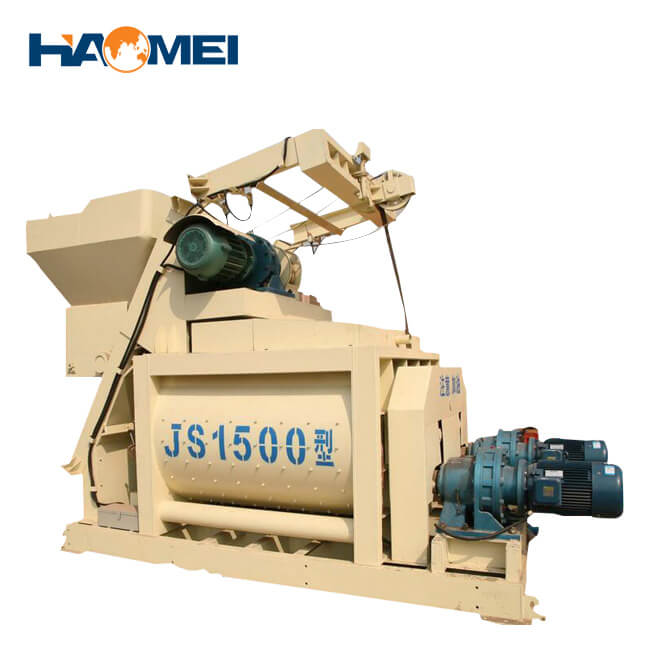

JS1500 concrete mixer machine.jpg

The Technical Parameter of Stationary concrete Mixer

Specification

Unit

Value

Discharging Volume

L

1500

Charging Volume

L

2400

Mixing Capacity

m3

1.5

Aggregate Size

mm

60/80

Working Circle

sec

60

Mixer Motor Power

kw

45

Lifting Motor Power

kw

18.5kw

Pump Moter Power

kw

3kw

Weight

kg

10000

Dimensions

mm

4500x2250x3000
