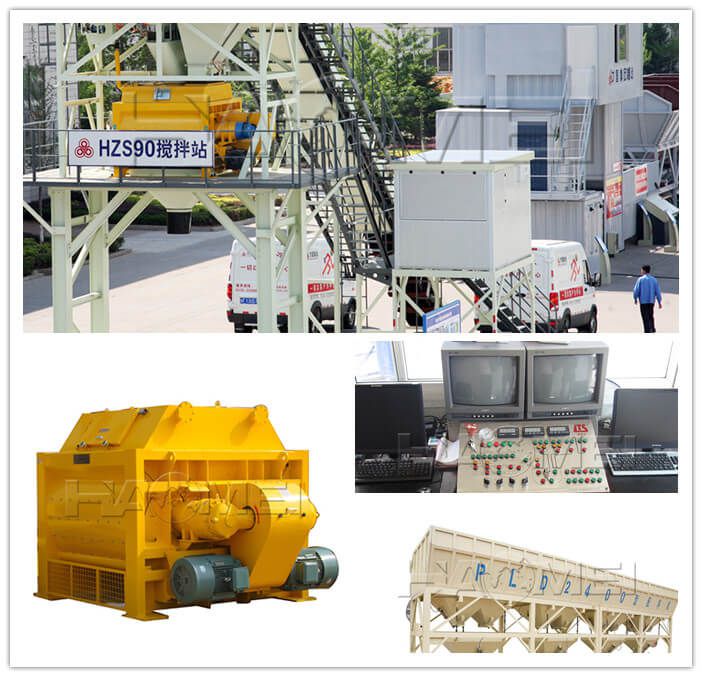

HZS 90 concrete batching plant is quietly working with capacity of 90 m3/h. It adopts JS1500 twin shaft compulsory concrete mixer, bringing higher capacity and better mixing performance. HZS90 concrete batch plant is an ideal choice for large and medium projects like dam,road and bridge. Another popular model is HZS60 stationary concret plant.
PC+PLC control system ensures the high reliability.
Modular structure keeps the installation and maintenance to the minimum.
Most electric elements adopt world famous brands.
Mixing system choose the spiral mixing system
Driving system adopts planetary gear,keeping same circumgyrating speed.
Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
Lubrication system adopts advanced centralized oil lubricating system and is equipped with overvoltage warning and low oil level warning,which is convenient, safe and reliable.
Model | HZS90 | |
Specification | Unit | Value |
Productivity | m3/h | 90 |
Capacity of Mixer | m3 | 1.5 |
Mix Power | kw | 44 |
Discharge Height | m | 3.8 |
Aggregate Bin | Quantity | 4 |
Aggregate Bin Capacity | m3 | 2.4 |
Max. Weighing Value of Aggregate | kg | 6000Kg |
Max. Weighing Value of Cement | kg | 1000Kg |
Max. Weighing Value of Water | kg | 500Kg |
Max. Weighing Value of Additive | kg | 50Kg |
Aggregate Measuring Accuracy | % | ±2% |
Water Measuring Accuracy | % | ±1% |
Cement Measuring Accuracy | % | ±1% |
Additive Measuring Accuracy | % | ±1% |
Cement Silo | _ | Optional |
Cement Screw Conveyor | _ | Optional |
Cement Silo Capacity | _ | Optional |
Control Mode | _ | Auto/Semi Control |
