HZS50 Stationary RMC Plant

Productivity:
50 m3/h
Capacity of Mixer:
1 m3
Aggregate Bin:
3
Mixer Power:
37 kw
Control Mode:
Auto/Semi control

What Is Stationary RMC Plant

HZS 50 series is a medium stationary rmc plant with capacity of 50 m3/h. It adopts twin shaft compulsory mixer and belt feeding system, which is widely used in large and medium scale building works, road and bridge works and concrete products prefabrication plants.

HZS50 Stationary RMC Plant Components

1) JS1000 Concrete Mixer

It not only can work independently, but also can work with PLD series aggregate batcher to make a simple concrete plant or adopted as the mixer in the high-end concrete batching plant.

2) Cement Silo of HZS50 Concrete Batching Plant

It is steel cement silos, equipped with safety valve, level indicator and screw conveyor. All these ensure efficient working performance.

3) Sand and stone feeding system

It uses flat belt or herringbone belt, and equipped with maintenance sidewalk, which is the ideal selection for the construction units to produce high quality concrete.

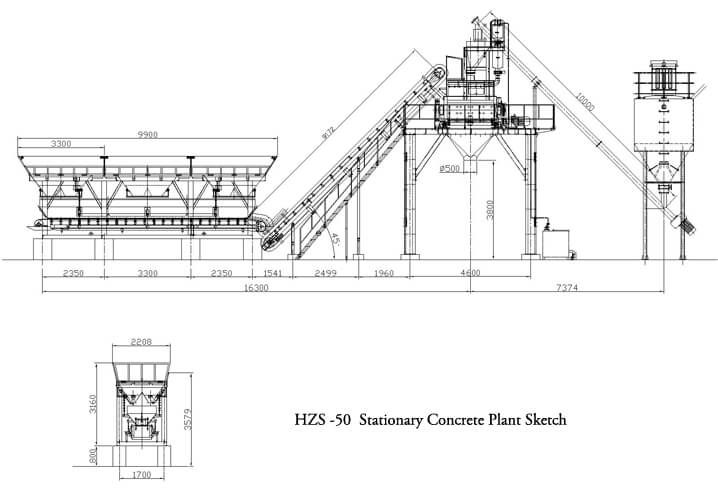

hzs50 stationary rmc plant sketch.jpg

Features of HZS 50 Stationary Concrete Plant

  • International popular modular structure.

  • Electric weighing equipment with buffer device and auto compensation function.

  • Main electrical components from Germany SIEMENS.

  • Special solution for your construction project is available.

HZS 50 stationary RMC plant .jpgThe Technical Parameters of HZS50 Stationary Batching Plant

Model

HZS50

Specification

Unit

Value

Productivity

m3/h

50

Capacity of Mixer

m3

1

Mixer Power

kw

37

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

1.6

Max. Weighing Value of aggregate

kg

3000

Max. Weighing Value of cement

kg

600

Max. Weighing Value of water

kg

400

Max. Weighing Value of additive

kg

50

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control
