HZS 35 Stationary Concrete Mix Plant

Productivity:
35 m3/h
Capacity of Mixer:
0.75 m3
Mixer Power:
18.5 kw
Aggregate Bin:
3
Control Mode:
Auto/Semi control

What Is HZS 35 Concrete Mixer Plant

HZS 35 stationary concrete plant is one of the small-sized plant series with capacity of 35 m3/h. It can be equipped with semi-automatic or fully-automatic control system. It’s widely used in the construction of road, bridge, dam, railway, highway, etc.

HZS 35 Stationary Concrete Batch Plant Components

HZS 35 batch plant consists of feeding, batching, mixing, electrical control and steel structure components.

1) PLD1200 Batching Machine

This Model is well known for efficient and accurate measurement. Besides, simple operation and long service life make it a popular choice in stationary concrete batching plant.

2) JS750 Concrete Mixer

Concrete mixer is a key part of a concrete plant. JS 750 mixer is double shaft compulsory concrete mixer with mixing capacity of 0.75 m3. It has features of good mixing performance, low energy consumption and low noise.

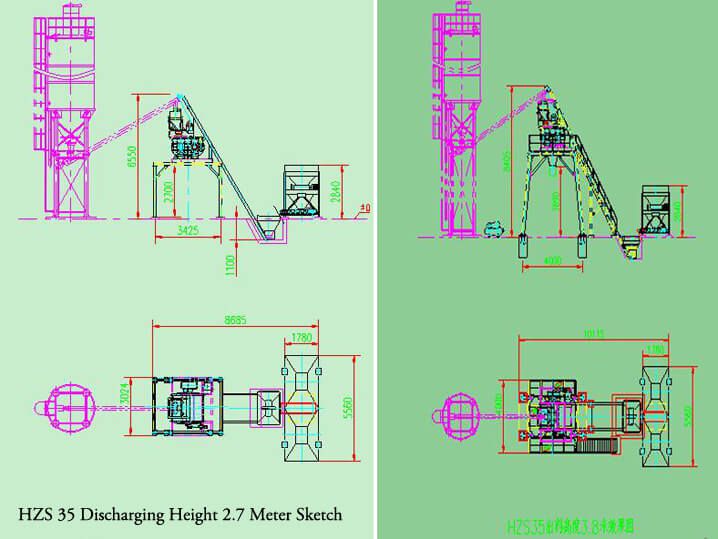

HZS35 batch plant sketch.jpg

Features of HZS35 Concrete Batch Plant

Adopt stationary modular structure for fast and easy installation.

Double computers with double controls for easy operation

Dust collection system and anti-noise design for environmental protection.

Aggregate, powder and water are respectively measured.

Duty cycle time of JS750 mixer is 60s.

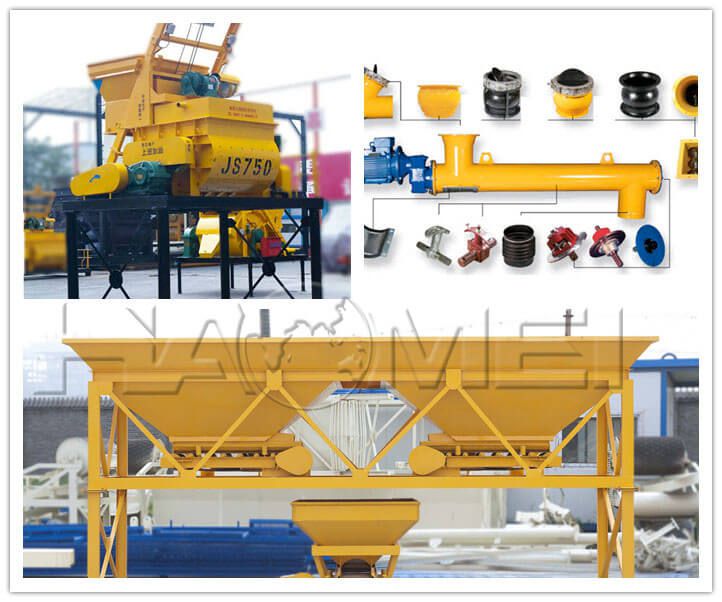

HZS35 stationary batch mix plant.jpg

The Technical Parameters of HZS35 Concrete Batching Plant

Model

HZS35 Concrete Batching Plant

Specification

Unit

Value

Productivity

m3/h

35

Capacity of Mixer

m3

0.75

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

1.2

Max. Weighing Value of aggregate

kg

2250

Max. Weighing Value of cement

kg

450

Max. Weighing Value of water

kg

300

Max. Weighing Value of additive

kg

75

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control
