JS4000 Large Concrete Mixer

:

What Is JS4000 Large Concrete Mixer

JS 4000 large concrete mixer is a twin shaft concrete mixer with the mixing capacity of 4 m3/h. It can be used independently or as a vital part of large concrete batch plant.

JS4000 concrete mixer can produce dry hard, plastic lightweight aggregate concrete, mortar,etc. ,which is an ideal choice for large, medium and small precast plant and highways, bridges, water conservancy, port,etc.

Features of Best Concrete Mixer

  • Heavy-duty design, easy to operate and low noise

  • The shaft bearings is made of high quality ductile iron castings.

  • A manual pump discharge valve for emergency discharge in the case of sudden power outage.

  • Strict welding craft gives the machine a longer service life.

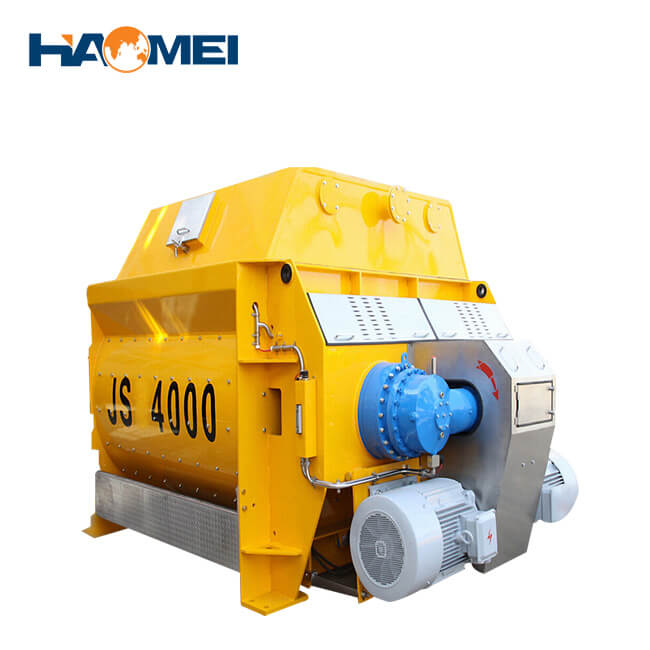

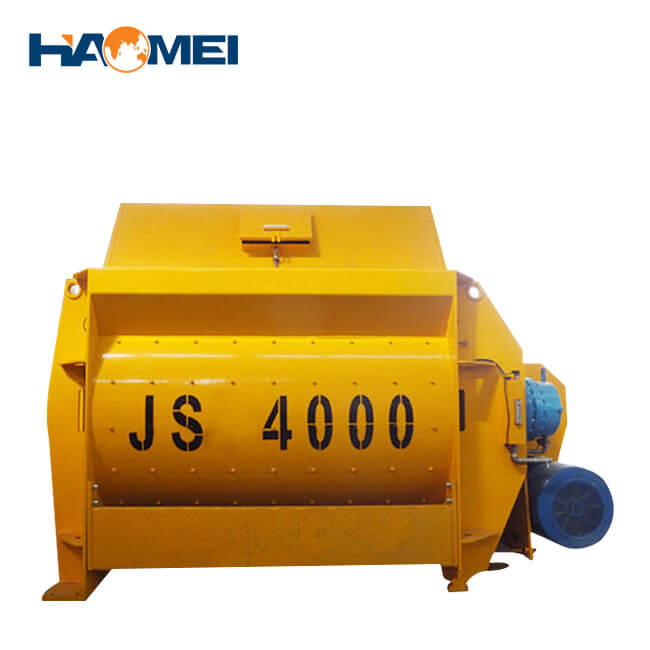

Js 4000 mixer concrete.jpg

The Technical Parameter of JS4000 Twin Shaft Concrete Mixer

Specification

Unit

Value

Discharging Volume

L

4000

Charging Volume

L

6000

Mixing Capacity

m3

4

Aggregate Size

mm

80/150

Working Circle

sec

30

Mixer Motor Power

kw

75

Weight

kg

12200

Dimensions

mm

4670x2600x2200
