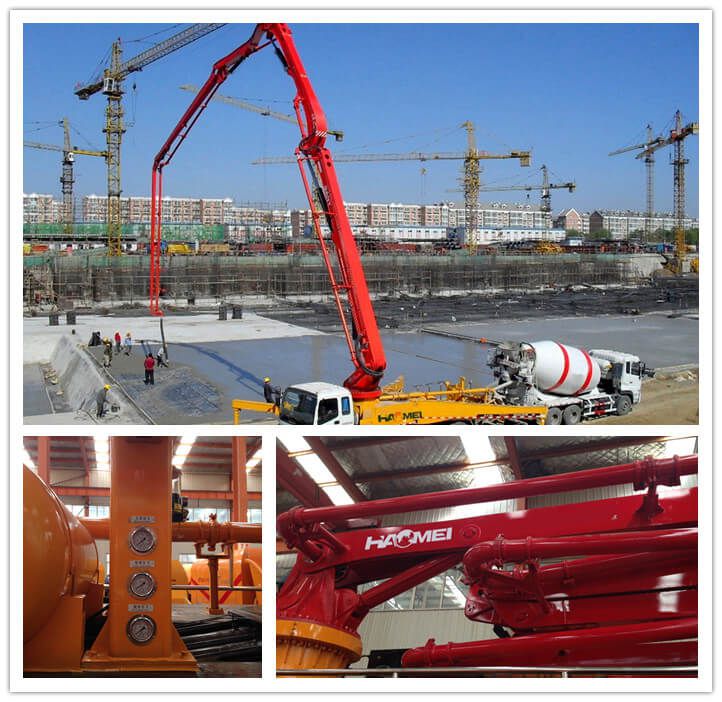

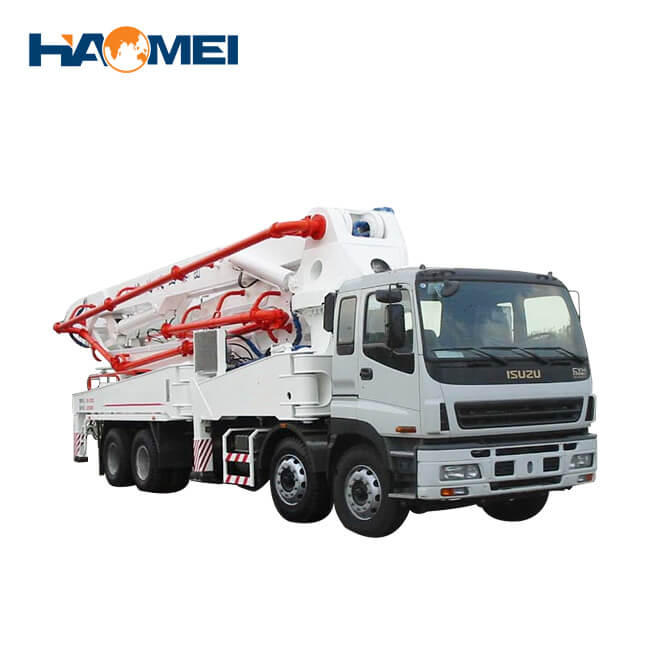

37m concrete pump truck consists of five parts: boom, pumping, hydraulic, support and electronic control. It can reach to the height of 38 meter with continuous transport of concrete. It is widely used in various industrial and civil construction projects such as water conservancy, dams, bridges and high-rise buildings.
Hydraulic system with manual overrides give you the confidence to get the job done even in emergency situations.
S-Valve Manifold. Directs oil flow to either shift cylinder.
Our pump truck is equipped with Germany HBC radio remote controls.
Strong power system reduced the rate of occurring faults.
Little mixing blind angle makes it suitable for transporting many kinds of concrete.
Specification | Unit | Value |
Output In Theory | m3/h | 125 |
Index Of The Pump Carry Capacity | Mpa.m3/h | 586 |
Theoretic Pumping Pressure | Mpa | 8.5 |
Bucket Volume | L | 700 |
Height Of Top Surface Of Bucket | mm | 1370 |
Model Of Dirstribution Valve | S Valve | |
Max. Operation Radius | m | 32.6 |
Max. Operation Height | m | 36.6 |
Max. Operation Depth | m | 25.5 |
Open Height Of Boom | mm | 8450 |

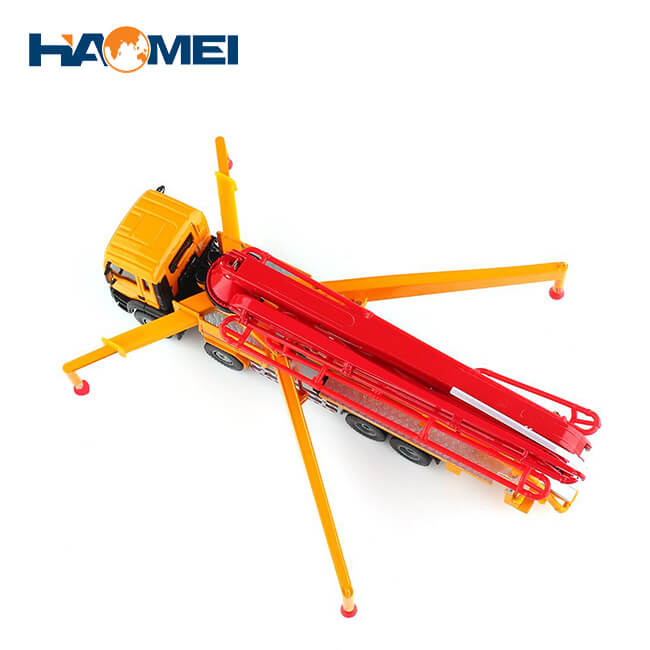

Distance Between Front Landing Legs | mm | 7058 |
Distance Between Rear Landing Legs | mm | 6848 |
Distance Between Front & Rear Landing Legs | mm | 6790 |
Diameter Of Delivery Pipe | mm | 125 |
Length Of Hose Pipe | m | 4 |
Rotary Range Of Boom | 365° | |
Quantity Of Boom | 4 | |
Rotary Angle Of Each Boom | ° | 92/180/180/270 |
Wire Line Control Distance | m | 33 |
Romote Control Distance | m | 200 |
Max. Speed | km/h | 90 |
Min. Turn Radius | mm | 8800 |
Brake Distance | m | 7 |
Approach Angle | ° | 16 |
Departure Angle | ° | 11 |
Chassis Model | HOWO ZZ5307N4647C | |
Wheel Base Between The First & The Second Axle | mm | 4600 |
Wheel Base Between The Second & The Third Axle | mm | 1350 |
Front Tread | mm | 2022 |
Rear Tread | mm | 1830 |
Max. Engine Output Power | kw | 247(2200r/min) |
Max. Engine Output Torque | n.m | 1350(1100-1600r/min) |
Max, Gradient Ability | % | 35 |
Fuel Consumption | L/100km | 34 |
Out Dimension(L×W×H) | mm | 12000×2490×3850 |
Total Weight | kg | 29000 |
