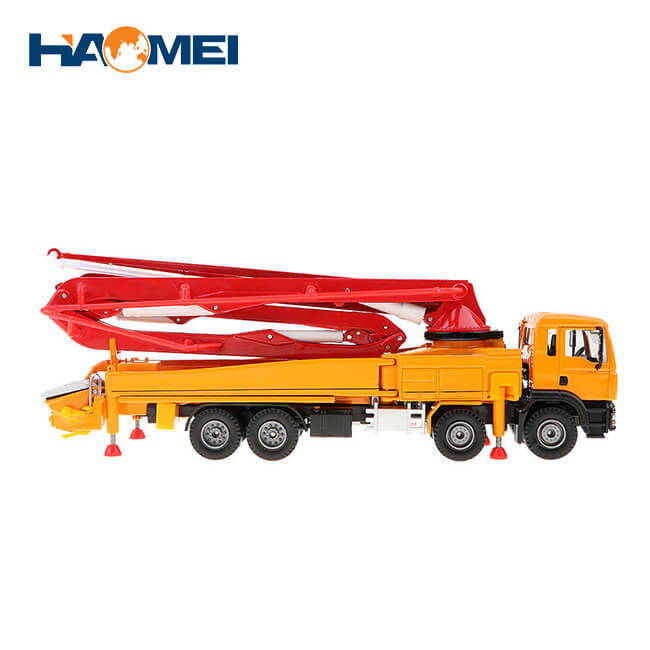

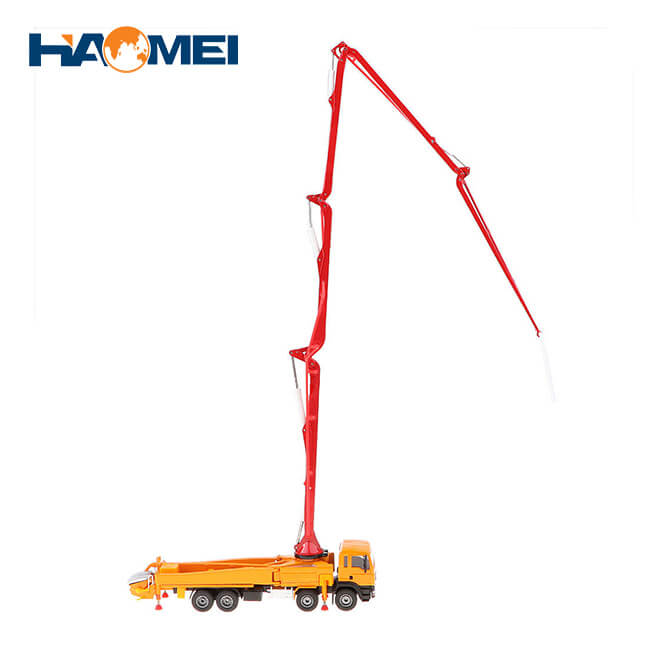

45 Meter Concrete Boom Truck

Output:
125 m3/h
Max. Operation Height:
45 m
Quantity Of Boom:
5
Romote Control Distance:
200 m
Max. Speed:
80 km/h

Introduction of 45 Meter Concrete Boom Truck

45 meter 5 section concrete boom truck can realize continuous transport of concrete to a certain height. With global purchase of quality parts, 45 meter concrete boom truck is of world-class level. It is widely used in various industrial and civil construction projects such as water conservancy, dams, bridges and high-rise buildings.

Features of Boom Pump Truck

  • Hydraulic system with manual overrides give you the confidence to get the job done even in emergency situations.

  • Boom welding is of high strength materials.

  • S-Valve Manifold. Directs oil flow to either shift cylinder.

  • Our pump truck is equipped with Germany HBC radio remote controls.

  • Strong power system reduced the rate of occurring faults.

  • Little mixing blind angle makes it suitable for transporting many kinds of concrete.

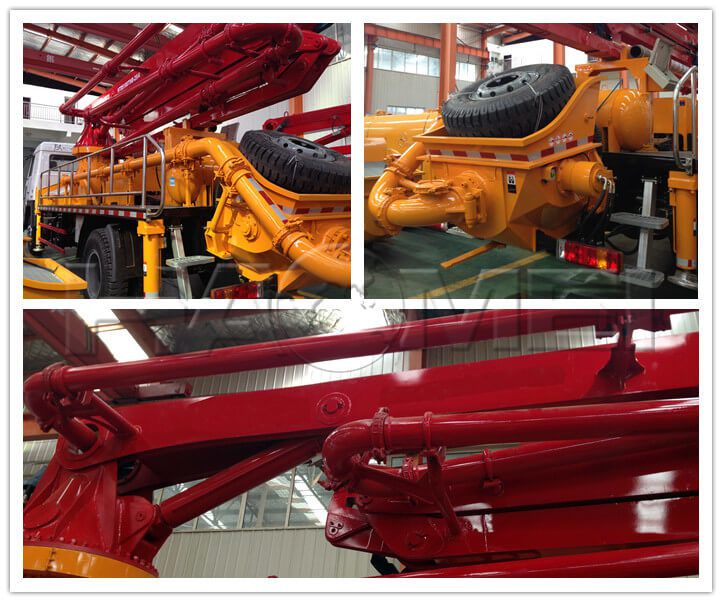

concrete boom pump truck for sale.jpg

The Technical Parameter of Concrete Boom Pump for Sale

Specification

Unit

Value

Output In Theory

m3/h

125

Index Of The Pump Carry Capacity

Mpa.m3/h

586

Theoretic Pumping Pressure

Mpa

8.5

Bucket Volume

L

700

Height Of Top Surface Of Bucket

mm

1400

Model Of Dirstribution Valve


S Valve

Max. Operation Radius

m

40.7

Max. Operation Height

m

44.7

Max. Operation Depth

m

31.3

Open Height Of Boom

mm

8495

Distance Between Front Landing Legs

mm

9550

Distance Between Rear Landing Legs

mm

9550

Distance Between Front & Rear Landing Legs

mm

9190

Diameter Of Delivery Pipe

mm

125

Length Of Hose Pipe

m

3

Rotary Range Of Boom


365°

Quantity Of Boom


5

Rotary Angle Of Each Boom

°

91/180/180/180/270

Wire Line Control Distance

m

33

Romote Control Distance

m

200

Max. Speed

km/h

80

Min. Turn Radius

mm

12100

Brake Distance

m

10

Approach Angle

°

16

Departure Angle

°

11

Chassis Model


HOWO ZZ5437S4667C

Wheel Base Between The First & The Second Axle

mm

1800

Wheel Base Between The Second & The Third Axle

mm

4600

Wheel Base Between The Third & The Fourth Axle

mm

1350

Front Tread

mm

2022

Rear Tread

mm

1830

Max. Engine Output Power

kw

275(2200r/min)

Max. Engine Output Torque

n.m

1500 /(1100~1600 r/min)

Max, Gradient Ability

%

35

Fuel Consumption

L/100km

40

Out Dimension(L×W×H)

mm

13300×2500×4000

Total Weight

kg

40000
