JZC/JZM Concrete Rotary Mixer

Charging Capacity:
350/560/800/1200 L
Discharging Capacity:
250/350/500/750 L
Productivity:
7-22.5 m3/h
Model:
JZC/JZM/JZR

What is Rotary Mixer

Rotary mixer, also called drum mixer is a gravity- type mixer, which is driven by ring gear. JZC/JZM mixers has five models: JZC 250,350,500,750 and JZM350. It is suitable for making quaking concrete and semi-hard concrete, which is applicable to normal construction site, road, bridge works and various types of concrete factories.

Features of Rotary Batch Mixers

  • 1 to 3 minute cycle times

  • Gentle mixing

  • Reasonable structure design and attractive appearance

  • Portable and easy to move

  • It will turn upright while mixing and turn reverse while discharging

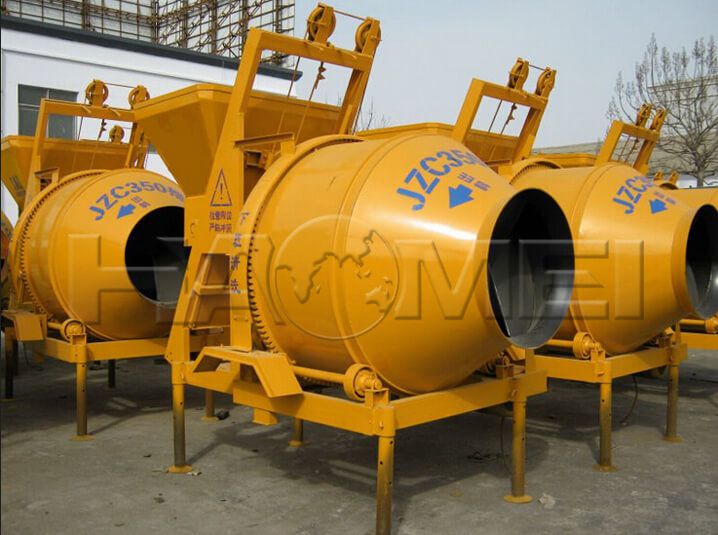

JZC35 concrete mixer.jpg

The Main Parameters of Cheap Concrete Mixer

Item

Charging Capacity

Discharging Capacity

Productivity

Aggregate Size

Overall Dimension

JZC250

350L

250L

7-10 m3/h

60 mm

3930*2040*3140 mm

JZC350A

560L

350L

10-14 m3/h

60 mm

4010*2140*3340 mm

JZC 350B

560L

350L

10-14 m3/h

60 mm

4010*2140*3340 mm

JZC500

800L

500L

18-20 m3/h

60 mm

5230*2300*5450 mm

JZM500

800L

500L

18-20 m3/h

60 mm

5130*2400*5550 mm

JZM750

1200L

750L

20-22.5 m3/h

60 mm

6107*2050*6070 mm

Model

Feeding Mechanism

Charging Capacity

Discharging Capacity

Productivity

Power

Overall Dimension

Weight

JZR350-A

Steel cable

560L

350L

10-14 m3/h

10 HP

3250*2240*3340 mm

1450 kg

JZR350-B

Hydraulic

560L

350L

10-14 m3/h

10 HP

3250*2240*3340 mm

1580 kg

JZR500-A

Steel cable

800L

500L

18-20 m3/h

16/18 HP

3750*2240*3800 mm

2050 kg

JZR500-B

Hydraulic

800L

500L

18-20 m3/h

16/18 HP

3750*2240*3800 mm

2150 kg
