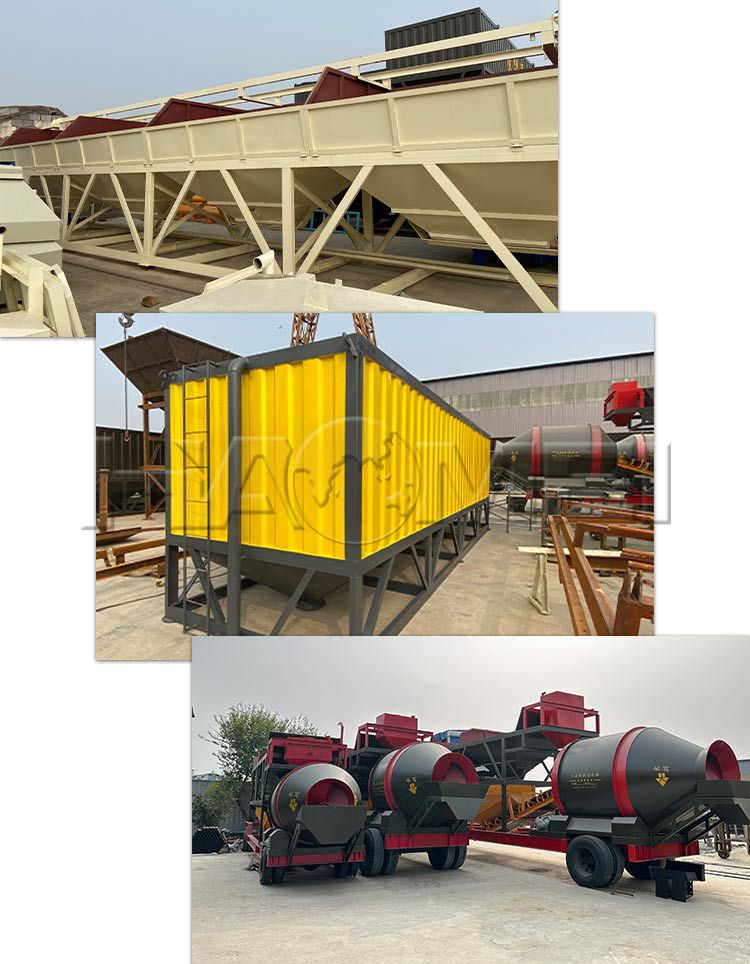

The YHZM35 drum type mobile concrete batch plant is an efficient, flexible and convenient construction equipment. It is widely used in various projects like roads, bridges, tunnels, hydropower stations, ports and docks to premix low-grade concrete. Its hourly output is 35m3/h.
The equipment adopts advanced design concepts and production processes, has excellent performance and stable operating efficiency, can produce concrete quickly and accurately, and greatly improves the efficiency and quality of engineering construction.
Model | YHZM35 | ||
Capacity | 35m3/h | ||
Concrete mixer | JZM750 | ||
Cycle time | 1.5 minutes | ||
Weighing accuracy | Aggregate | ±2% | |
Cement | ±1% | ||
Water | ±1% | ||
additive | ±1% | ||
Name | Specification | ||
Model | JZM750 drum mixer | ||
Capacity | 0.75m3/batch | ||
Motor power | 5.5kw*2 | ||
Mixing time | 40s | ||
Discharging height | 1300mm; If using concrete transit mixer to collect concrete，we can make a slope with the height of 3000mm to enable it to collect concrete. | ||
Name | Specification | ||
Model | PLD1200 | ||
Volume of storage bin | 4.5m3*3pcs | ||
Weighing sensor | 1000kg*2pcs | ||
Cylinder | 100*250*1pcs | ||
Motor power | 4kw*3pcs | ||
Belt conveyor size | 500*10530mm*1 ,600*8450mm*1,500*4230mm*1 | ||
Loading height | 3100mm | ||
Thickness of storage bin steel plate | 3mm | ||
Name | Specification | ||
Qty. | 1 pcs | ||
Size | 11100mm*2000mm*780mm | ||
1. It adopts rotary drum mixer, which can mix various materials, including cement, sand, gravel, water, etc., with good mixing effect, short mixing time and high mixing uniformity.
2. It chooses a fully automatic control system, which is easy to operate, safe and reliable, can ensure the accuracy and stability of the production process, reduce the error and labor intensity of manual operation, and also reduce the waste of human resources.
3. It has good mobility and adaptability, and can be quickly installed, disassembled and transferred at the construction site.
4. The equipment uses a self-propelled chassis, which has good road adaptability and off-road performance, and can easily pass through various complex terrains and environments.
5. The equipment also has good flexibility and can be used alone or with other machines, which can meet the needs of various complex projects.
6.We also have YHZS35 portable concrete plant using twin shaft concrete mixer for you.
