HZS25 Small Concrete Batch Plant

Productivity:
25
Capacity of Mixer:
0.5
Discharge Height:
3.8
Aggregate Bin:
3
Control System:
Auto/Semi control

What Is HZS25 Stationary Concrete Batching Plant

HZS 25 concrete plant is a small concrete batch plant. It is applicable for making dry concrete, plastic concrete and fluid concrete, of which capacity is 25 m3. Therefore, it is an ideal choice for small-scale construction projects, precast yard and commercial concrete companies.

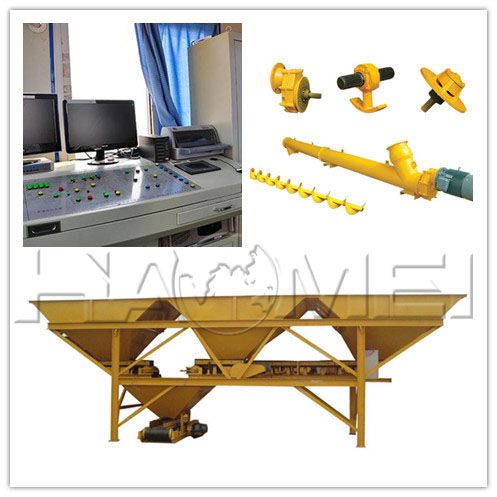

HZS 25 Stationary Concrete Batching Plant Components

Stationary concrete batching plant is made up of feeding system, aggregate batching system, batching machine JS500, control system,etc.

1) Aggregate batching system

Our batching machine adopts electronic weighing and digital display,featuring accurate weighing, high batching accuracy, fast speed, strong controlling ability and simple operation.

2) Mixer machine JS500

JS500 mixer is a double shaft compulsory concrete mixer. It is applicable for making different kinds of concretes. Our compulsory concrete mixer owns multiple national patents like taper mixing arm and monitoring system.

3) Control System

We adopt automatic control system, which can also be manual. Computer control interface simulation screen shows the whole dynamic process of station, intuitive and clear. All the data can be printed.

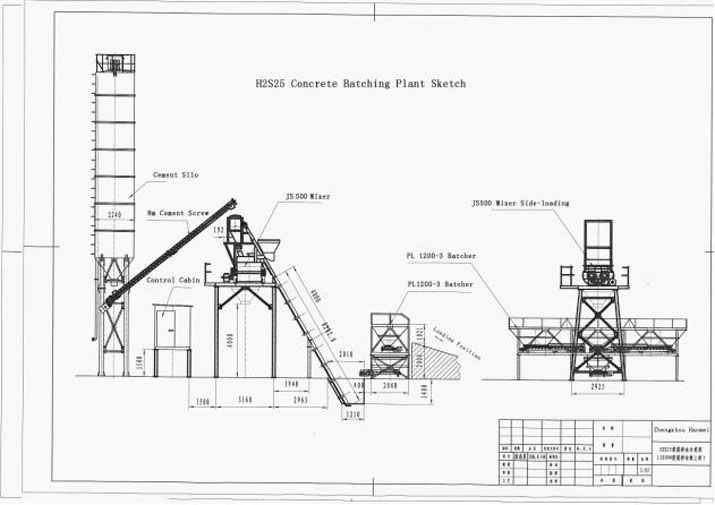

sketch of staionary concrete plant.jpg

Features of HZS25 Stationary Mixing Plant

  • International popular modular structure.

  • Twin shaft compulsory concrete mixer brings even mixing effect.

  • Main electrical components from Germany SIEMENS.

  • Shaft-end sealing technology ensures no leakage.

  • Wear-resisting steel lining board.


The Technical Parameters of HZS25 Concrete Mixing Plant

Model

HZS25

Specification

Unit

Value

Productivity

m3/h

25

Capacity of Mixer

m3

0.5

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

0.8

Max. Weighing Value of aggregate

kg

1500

Max. Weighing Value of cement

kg

300

Max. Weighing Value of water

kg

150

Max. Weighing Value of additive

kg

40

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control
