HZS150 Stationary Concrete Plant

Productivity:
150 m3/h
Capacity of Mixer:
3 m3
Mix Power:
110 kw
Aggregate Bin:
4
Control Mode:
Auto/Semi Control

What Is HZS150 Stationary Concrete Mixing Plant

HZS150 stationary concrete mixing plant is a large model with capacity of 150 m3/h. Modular design makes the whole installation only for 7- 10 days. With high capacity and excellent mixing performance, it is widely used for large size construction projects like bridge, dam, road, school,etc. Another popular model is HZS120 concrete batch plant.

hzs150 stationary concrete mixing plant (2).jpg

Spotlights of HZS150 Stationary Concrete Batch Plant

  • Concrete mixer is Italy Sicoma mixer or Germany BHS mixer with strong mixing performance.

  • PC+PLC control system adopt international famous brand and completely self-developed control system.

  • All materials scale adopts independent measurement, improving the measurement precision.

  • With Haomei specially designed dust collector bag, completely eliminating the dust emission.

  • With JS3000 twin shaft compulsory concrete mixer, HZS 150 concrete batch plant can produce multiple kinds of concrete with high efficiency.

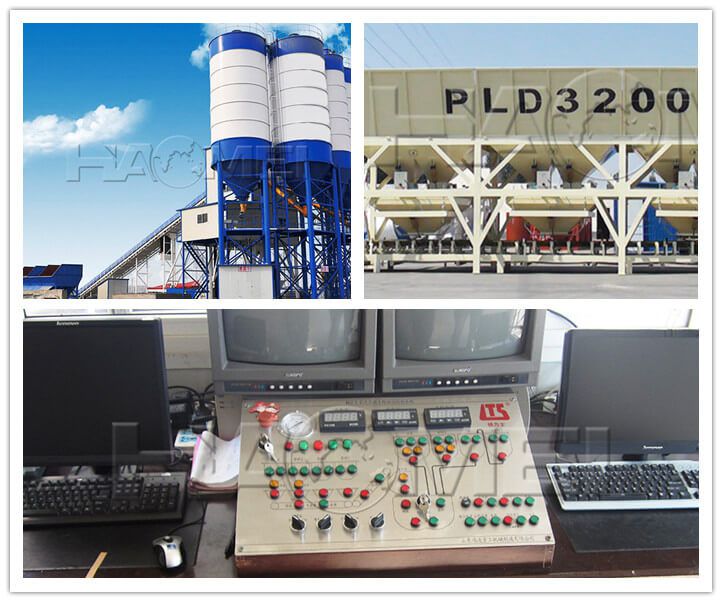

hzs150 stationary concrete plant.jpg

Specification of HZS150 Stationary RMC Plant

Model

HZS150

Specification

Unit

Value

Productivity

m3/h

150

Capacity of Mixer

m3

3

Mix Power

kw

110

Discharge Height

m

3.8

Aggregate Bin

Quantity

4

Aggregate Bin Capacity

m3

4.8

Max. Weighing Value of Aggregate

kg

2x4000

Max. Weighing Value of Cement

kg

1800

Max. Weighing Value of Water

kg

800

Max. Weighing Value of Additive

kg

50

Aggregate Measuring Accuracy

%

±2%

Water Measuring Accuracy

%

±1%

Cement Measuring Accuracy

%

±1%

Additive Measuring Accuracy

%

±1%

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capacity

_

Optional

Control Mode

_

Auto/Semi Control

Original source: https://www.concretebatchplanthm.com/product/hzs150-stationary-concrete-plant.html
