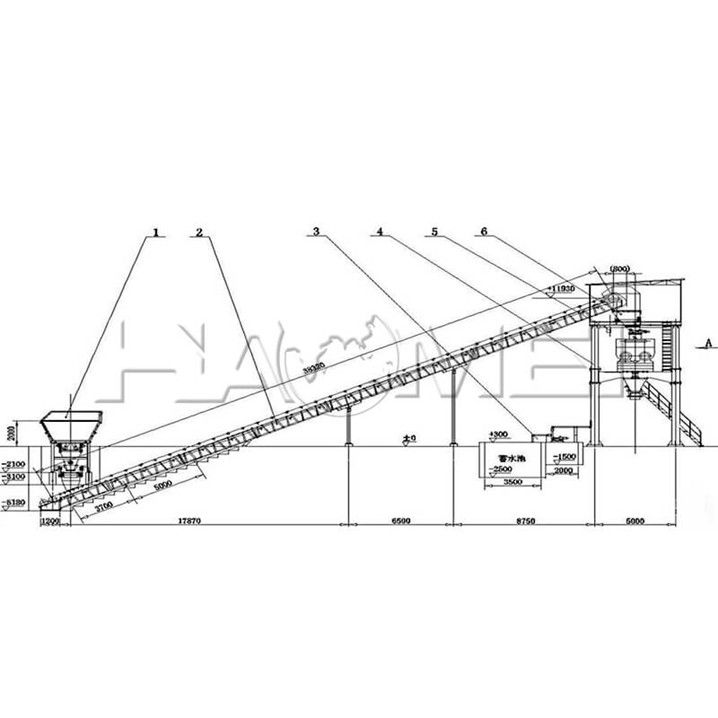

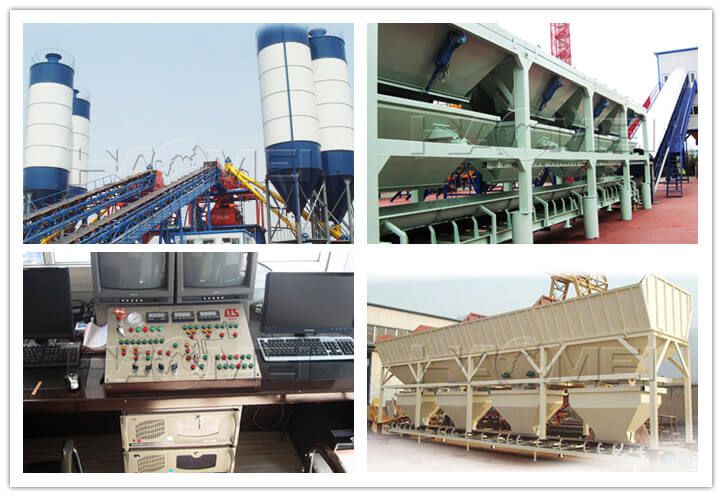

HZS 120 concrete batch plant is a large-sized stationary concrete plant with capacity of 120 m3/h. It adopts JS2000 twin shaft compulsory concrete mixer, providing higher mixing capacity. HZS120 stationary concrete plant is a first choice of large scale projects.
Human-based intelligent control facilitates the operation greatly.
JS2000 twin shaft compulsory concrete mixer is of high efficiency.
Driving system and lubrication system are well designed, ensuring smooth working process.
Modular Structure shortens the installation and maintenance time to the minimum.
Model | HZS120 | |
Specification | Unit | Value |
Productivity | m3/h | 120 |
Capacity of Mixer | m3 | 2 |
Mix Power | kw | 74 |
Discharge Height | m | 3.8 |
Aggregate Bin | Quantity | 4 |
Aggregate Bin Capacity | m3 | 3.2 |
Max. Weighing Value of Aggregate | kg | 2x3000 |
Max. Weighing Value of Cement | kg | 1200 |
Max. Weighing Value of Water | kg | 600 |
Max. Weighing Value of Additive | kg | 50 |
Aggregate Measuring Accuracy | % | ±2% |
Water Measuring Accuracy | % | ±1% |
Cement Measuring Accuracy | % | ±1% |
Additive Measuring Accuracy | % | ±1% |
Cement Silo | _ | Optional |
Cement Screw Conveyor | _ | Optional |
Cement Silo Capacity | _ | Optional |
Control Mode | _ | Auto/Semi Control |
