HZS180 Stationary Concrete Batch Plant

Productivity:
180 m3/h
Capacity of Mixer:
3 m3
Mix Power:
110 kw
Aggregate Bin:
4
Control Mode:
Auto/Semi Control

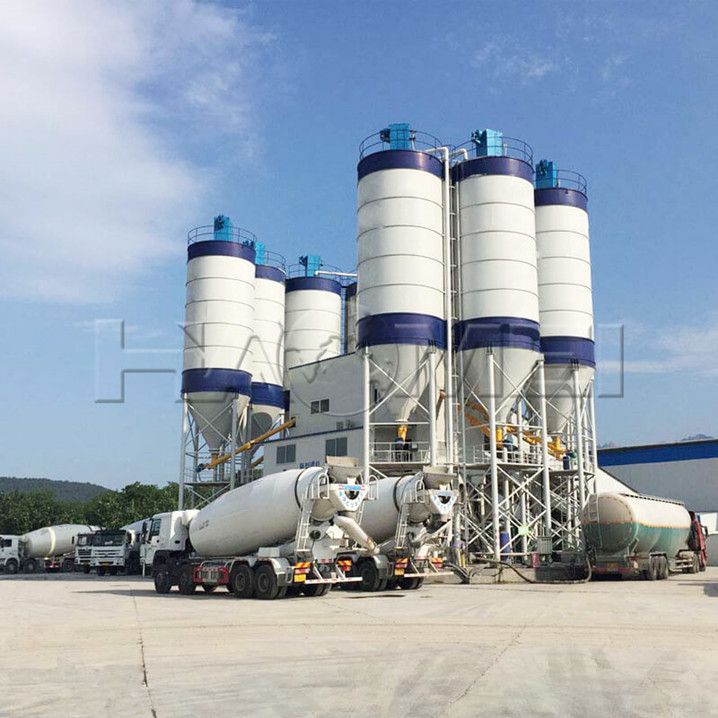

What Is HZS 180 Stationary Concrete Plant

HZS 180 stationary concrete plant is a preferred large series with capacity of 180 m3/h. Each part are chosen from the most reliable famous brands. Modular structure makes it installation time only for 7-10 days. It is widely used for ground building, traffic engineering, railway, bridge,dock and various construction sites.

Composition of HZS 180 Stationary Batching Plant

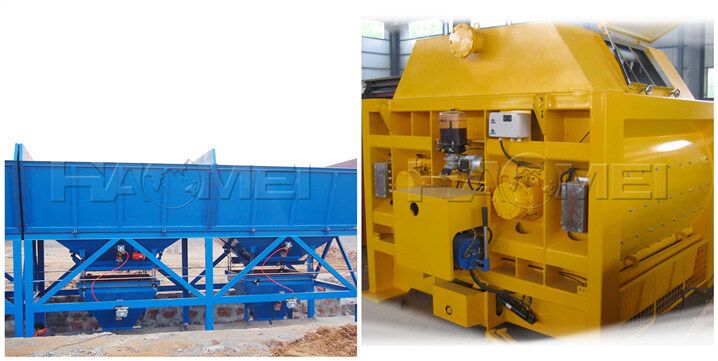

1. Concrete mixer model JS4000: Mixing console power is of 110KW and total power of the equipment is 200KW.

2. Warehouse cell: 4 grid batching machines, of which batching capability is 240m3.

3. It has two rows of cement silo and a series of screw conveyor.

4. The aggregate system chooses large herringbone belt, which can be set according to the needs of the pedestrian walkway security.

HZS180 concrete plant.jpgSpotlights of HZS 180 Stationary Concrete Batch Plant

  • Modular design structure, which is easy to install and disassemble

  • JS4000 mixer is of strong capacity and even mixing performance

  • PLD4800 aggregate batching machine and individually weigh system will improve the efficiency of weighing system.

  • Cement weighing range and accuracy is (0 ~ 1500) 1% kg, additive weighing range and accuracy (0 ~ 50) is 1% kg.


Specification of HZS 180 Stationary Concrete Batching Plant

Model

HZS180

Specification

Unit

Value

Productivity

m3/h

180

Capacity of Mixer

m3

3

Mix Power

kw

110

Discharge Height

m

3.8

Aggregate Bin

Quantity

4

Aggregate Bin Capacity

m3

4.8

Max. Weighing Value of Aggregate

kg

2x4000

Max. Weighing Value of Cement

kg

1800

Max. Weighing Value of Water

kg

800

Max. Weighing Value of Additive

kg

50

Aggregate Measuring Accuracy

%

±2%

Water Measuring Accuracy

%

±1%

Cement Measuring Accuracy

%

±1%

Additive Measuring Accuracy

%

±1%

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capacity

_

Optional

Control Mode

_

Auto/Semi Control
