HZS75 Stationary Concrete Batching Plant For Sale

Productivity:
75 m3/h
Capacity of Mixer:
1.5 m3
Mixer Power:
44 kw
Aggregate Bin:
3
Control Mode:
Auto/Semi control

What Is HZS75 Stationary RMC Plant

HZS stationary RMC plant belongs to medium-size concrete batch plant with the capacity of 75m3/h. It is applicable to hard concrete, plastic concrete, fluid concrete and commercial concrete, which is widely used in large and medium scale building works, road and bridge works and concrete products prefabrication plants.

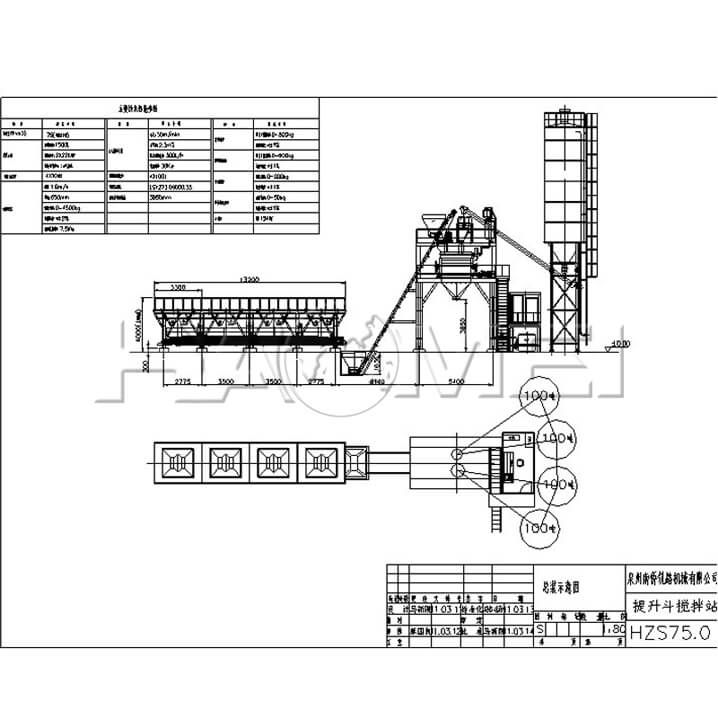

hzs75 stationary concrete plant sketch (2).jpg

Spotlights of HZS75 Stationary Concrete Batching Plant

  • Modular design: minimum installation and maintenance time.

  • JS1500 twin shaft concrete mixer: quick and even mixing performance

  • Control technology with newest deign concept:electric weighing, computer control, digital display, etc.

  • Sand and stone feeding system with belt and sidewalk: ideal choice for large and medium construction site.

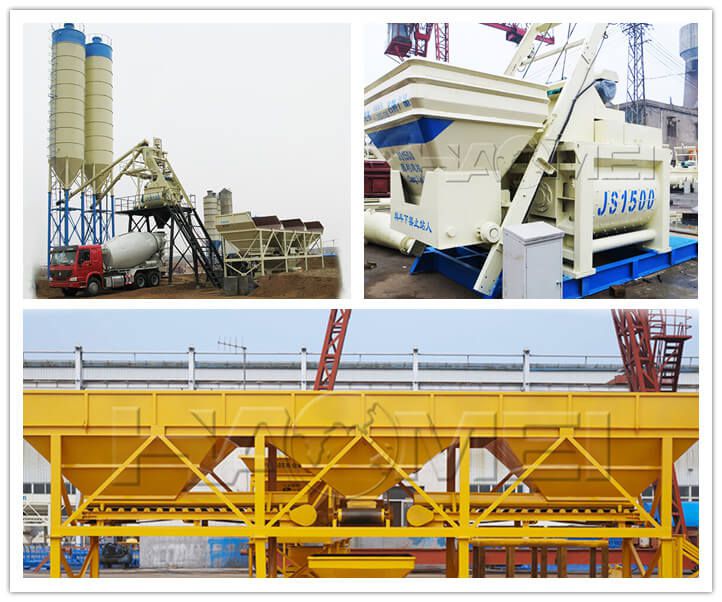

HZS75 stationary concrete plant.jpg

The Technical Parameters of HZS75 Stationary Concrete Plant

Model

HZS75

Specification

Unit

Value

Productivity

m3/h

75

Capacity of Mixer

m3

1.5

Mixer Power

kw

44

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

2.4

Max. Weighing Value of aggregate

kg

6000

Max. Weighing Value of cement

kg

1000

Max. Weighing Value of water

kg

500

Max. Weighing Value of additive

kg

50

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control
