LB 1500 Asphalt Plant For Sale

Type:
Batch Mix / Hot Mix
Capacity:
120 T/H
Mixer:
1700kg/batch
Hot Asphalt Temperature:
160℃(adjustable)
Cycling time:
45S

Why Choose LB1500 Asphalt Plant Equipment

LB1500 asphalt plant is a kind of warm mix asphalt plant. The capacity of LB1500 asphalt mixing plant is 120t/h. The technical indicators of our asphalt concrete mixing plant are in line with the technical standards of the airport, national highway and expressway engineering.

Configuration of Haomei Asphalt Plant Manufacturer

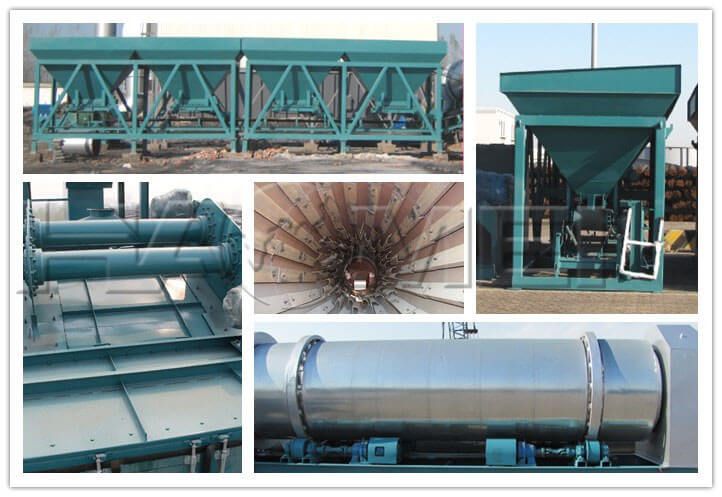

1. Cold Aggregate Feeding System

  • Bin volume: 4*9m3

  • Emergency safety switch

  • Material Shortage detection system

2. Drying Drum

  • PC temperature measuring device

  • Integral thermal insulation,energy saving

3. Burning system(Made in China)

Light and heavy oil residue mechanical atomizing burner with maximum combustion capacity of 950Kg/h.

4. Mixing tower frame

  • The drive system is equipped with a shaft-mounted reducer with a highly reliable, long working life

  • Uniquely designed physical anti-wear structure with a service life of 10-15 years

5. Powder storage and lifting system

6. Bitumen heating system(Conduction oil)

7. Pneumatic system

8. Dust-removal system(Bag dust filter)

9. Control room and control system

  • Dual-machine & dual-control industrial system

  • American Emerson inverter

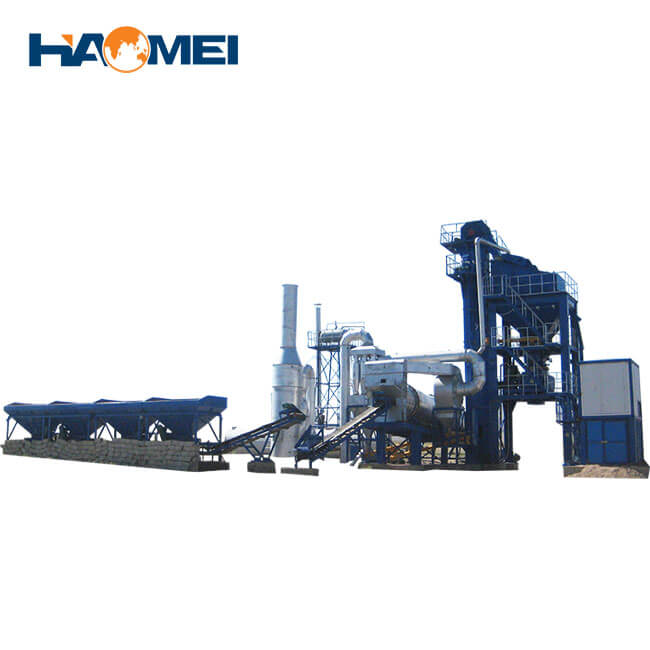

lb1500 warm mix asphalt plant.jpg

The Main Parameter of Asphalt Production Plant

Model

LB1500 Asphalt Batch Mix Plant

Type

Batch Mix / Hot Mix

Capacity

120 T/H (Standard Working Condition)

Mixer

1700kg/batch (Standard Working Condition)

Rate of fuel consumption

≤6.5Kg/T

Weighing Precision

sand and gravel aggregate ±0.3%; powder ±0.2%; bitumen:±0.2%

Hot Asphalt Temperature

160℃(adjustable)

Cycling time

45S

Air Emissions

≤30mg/Nm³ (bag dust collector)

Working Noise

≤85db(A)

Equipment operation reliability

≥85%

Temperature stability

Hot aggregate discharging temperature stability: ±9℃

Finished product material discharging temperature stability: ±6℃

Operation

Full Auto/Manual Operation

Installation Power

380kw

Land area of the equipmen

50m×25m

Electrical Design

220V/380V-50Hz

Documents

Chinese-English edition foundation drawing/ Electric Circuit Diagram; Operation Manual; Qualification Certificate
