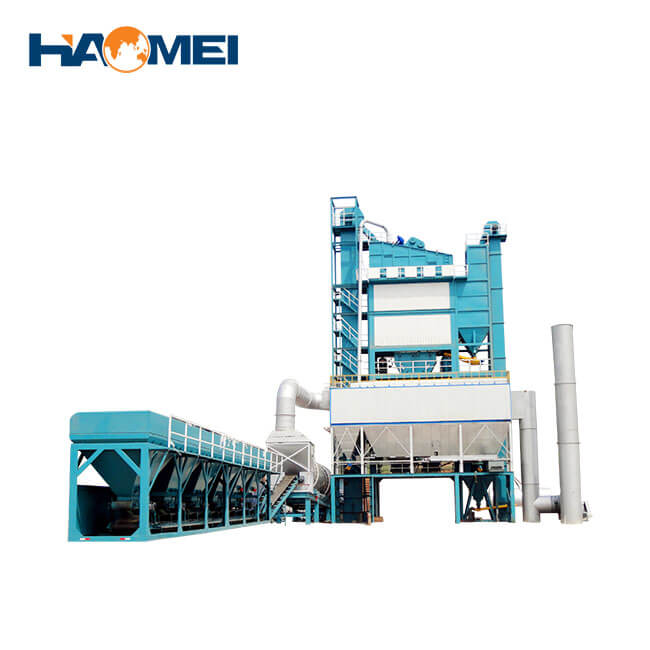

LB asphalt concrete plant is designed for the production of different asphalts like asphalt mixture, modified asphalt mixture, colored asphalt mixture,etc. Its capacity is 100T/h. The technical indicators of our asphalt concrete mixing plant are in line with the technical standards of the airport, national highway and expressway engineering.
Main Components of LB1200 Asphalt Batch Plant For Sale

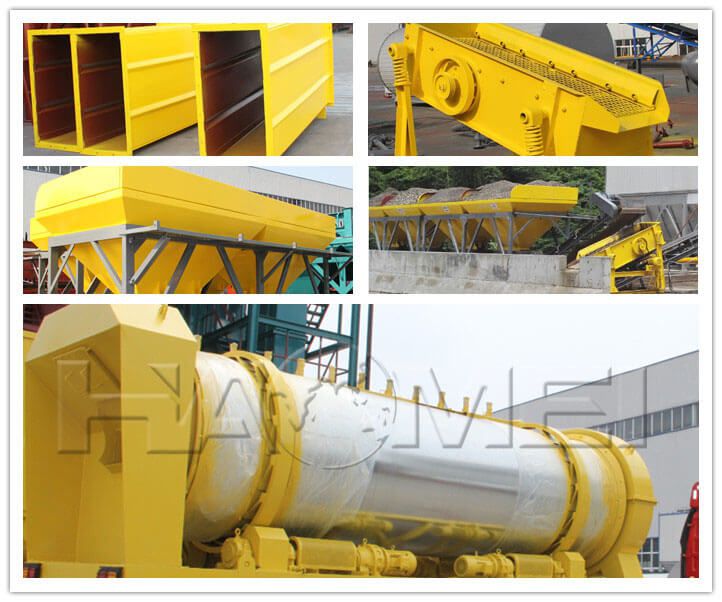

1.Cold Aggregate Feeding System
Bin volume: 4*7.5m3
Material Shortage detection system
2. Drying Drum
Temperature measuring device controlled by PC.
Integral thermal insulation, energy-saving.
3. Burning system
Emergency automatic flame out protection device
Light and heavy oil residue mechanical atomizing burner with maximum combustion capacity of 750Kg/h
4. Mixing tower frame
The Max mixing capacity is 1400kg/batch, and the rated mixing period is 45s.
5. Powder storage and lifting system
6. Bitumen heating system(Conduction oil)
7. Dust-removal system(Water Dust filter )
8. Control room and control system
Double-layer color steel wall panels and doors and windows
Dual-machine & dual-control industrial system
The Technical Parameter of LB 1200 Asphalt Batch Mix Plant For Sale
LB1200 Asphalt Batch Mix Plant
Batch Mix / Hot Mix
100 T/H (Standard Working Condition)
sand and gravel aggregate ±0.5%; powder ±0.25%; bitumen:±0.25%
Hot Asphalt Temperature
≤50mg/Nm³ (bag dust collector)
Equipment operation reliability
Hot aggregate discharging temperature stability: ±9℃
Finished product material discharging temperature stability: ±6℃
Full Auto/Manual Operation
Chinese-English edition foundation drawing/ Electric Circuit Diagram; Operation Manual; Qualification Certificate
