YHZS75 Mobile Batching Plant for Sale

Productivity:
75 m3/h
Overall Power:
105 kw
Discharge Height:
3.8 m
Overall Weight:
25 t
Trail speed:
≤40 km/h

What Is YHZS75 Mobile Batching Plant for Sale

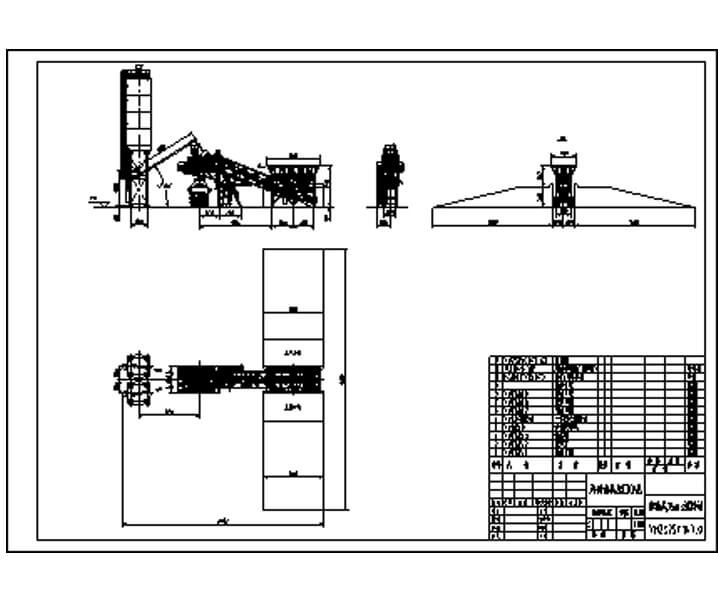

YHZS75 batching plant belongs to a large-sized one among four models with capacity of 75 m3/h. It is is completely mobile and travels as a single load of freight including dust collection, saving you transportation cost. Another large model is YHZS60 mobile RMC plant.YHZS75 Mobile Batching Plan sketch.jpg

Features of YHZS 75 Mobile RMC Plant

  • Set up in less than 1 day.

  • Foundation is not needed in most cases.

  • Adopt JS1500 concrete mixer for efficient and even mixing performance.

  • Dynamic display on a computer screen is helpful to operator to adjust the production technology parameters.

  • Plant is completely erected and tested at the factory prior to shipping.

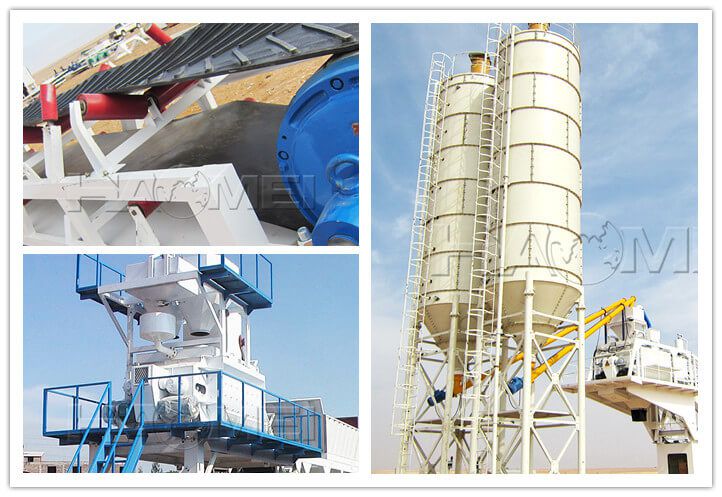

mobile rmc plant.jpg

The Technical Parameters of YHZS75 Mobile Batch Mix Plant

Specification

Unit

Value

Productivity

m3/h

75

Weighing scale Concrete

kg

3750

Weighing scale Cement

kg

900

Weighing Scale Water

kg

450

Weighing Scale Liquid Additive

kg

45

Overall Power

kw

About 105

Power Source

V/ HZ

380/50

Discharge Height

m

3.8

Overall Weight

t

25(cement silo not included)

Trail speed

km/h

≤40

Specification(LxWxH) During work

m

18.1x3.6x8.2

During transportation

m

18.6x2.4x4.35

Original source: https://www.concretebatchplanthm.com/product/yhzs75-mobile-batching-plant-for-sale.html
