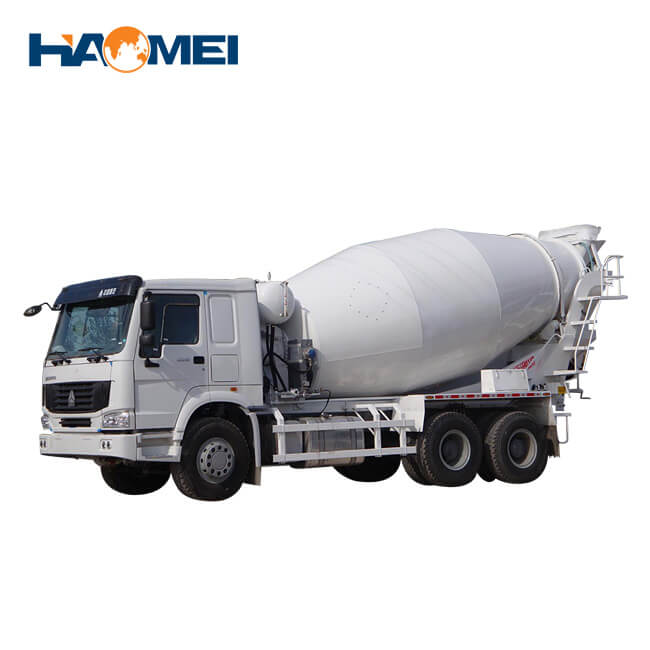

HM10-D Mobile Concrete Mixer Truck

Mixing Capacity :
10 m³
Tank Volume:
17.05 m³
Feeding Speed:
≥3.5 m³/min
Discharging Speed:
≥3 m³/min
Residual Ratio of Discharging:
≤0.5%

What Is Mobile Concrete Mixer Truck

HM10-D mobile concrete mixer truck is well-designed to transport mass concrete to job site with the tank volume of 17.05 m3. Fast feeding and discharging speed will greatly save the whole transporting time.

Features of Mobile Concrete Mixer for Sale

  • The concrete is mixed all the way up to the job site, effectively avoiding coagulations and stratification.

  • Imported original hydraulic system for better stability.

  • Multiple designs like daytime running lights give you more safety.

  • High-intensity drum material, featuring better wear-resistance and long service life.

  • It is of light weight, flexible and faster.

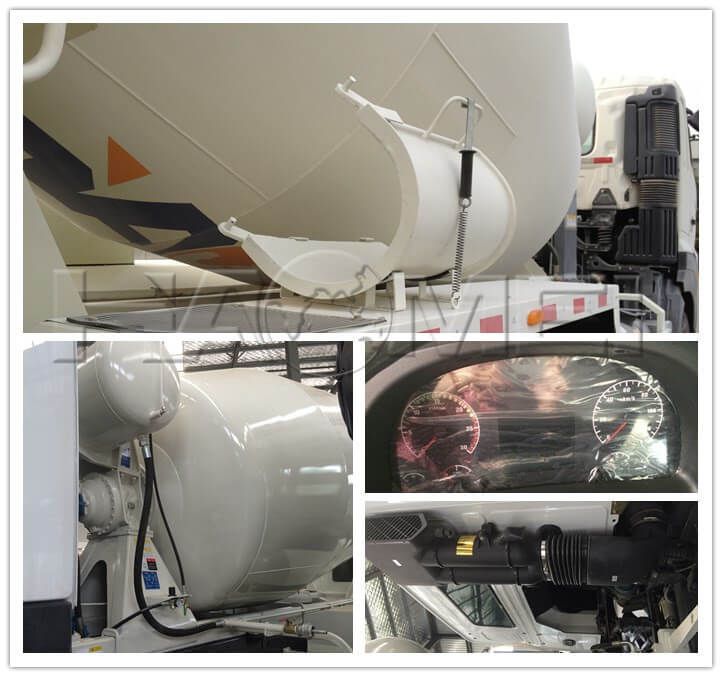

concrete mixer truck parts.jpg

The Specification of Concrete Transport Truck

Model

HM10-D

Specification

Unit

Value

Mixing Capacity

10

Tank Volume

17.05

Feeding Speed

m³/min

≥3.5

Discharging Speed

m³/min

≥3

Residual Ratio of Discharging

%

≤0.5%

Water Supply System


Air pressure

Water Tank Volume

L

300

Overall Dimension

mm

9050*2496*3750

Chassis Model


HOWO

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

314

Max Speed

km/h

90

Engine Max Output Power

kw

276

Emission Standard


Euro Ⅲ

Rated Load

kgs

13500

Overall Weight

kgs

25000

Wheelbase

mm

3825+1350
