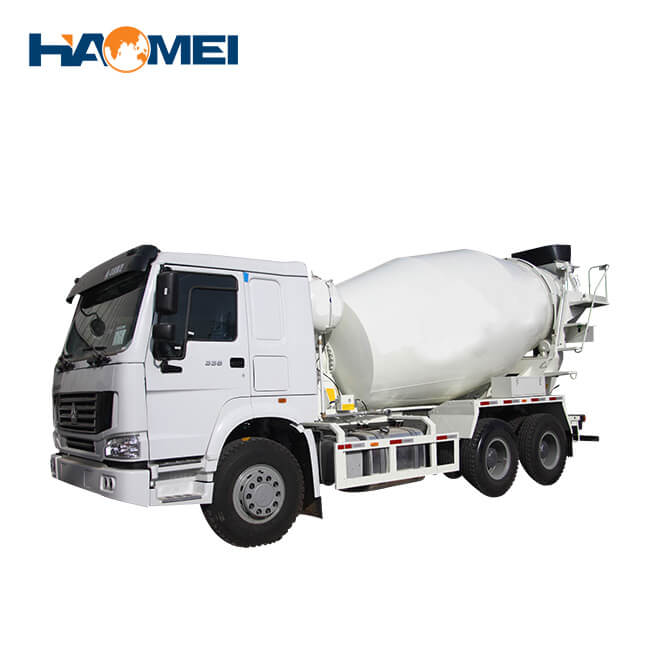

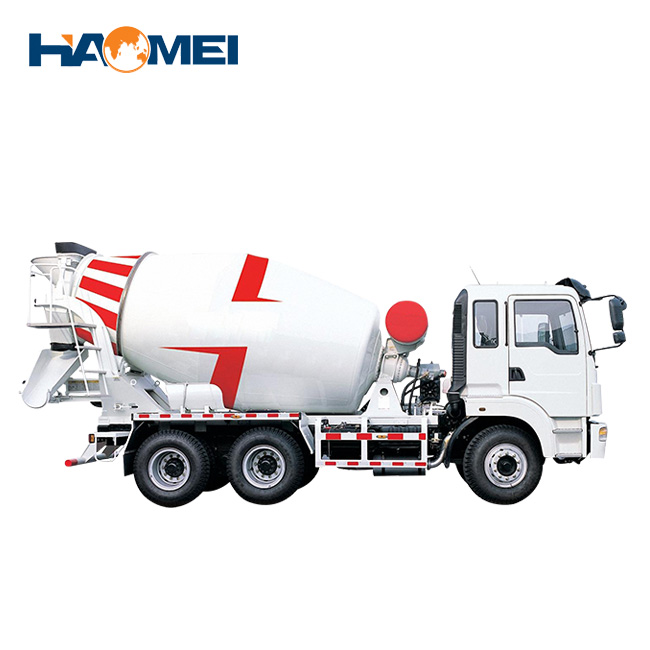

HM9-D Truck Mounted Concrete Mixers

Mixing Capacity :
9 m³
Tank Volume:
14.7 m³
Feeding Speed:
≥3.5 m³/min
Discharging Speed:
≥3 m³/min
Residual Ratio of Discharging:
≤0.5%

What Is HM9-D Truck Mounted Concrete Mixers

HAOMEI serial Concrete Truck Mixer is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the job site. It can effectively delay concrete coagulations and avoid concrete stratification and education.

Application Scope of Concrete Transit Mixer

Concrete Transit Mixer is an ideal choice for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports. It can effectively save time and ensure the smooth completion of the project.

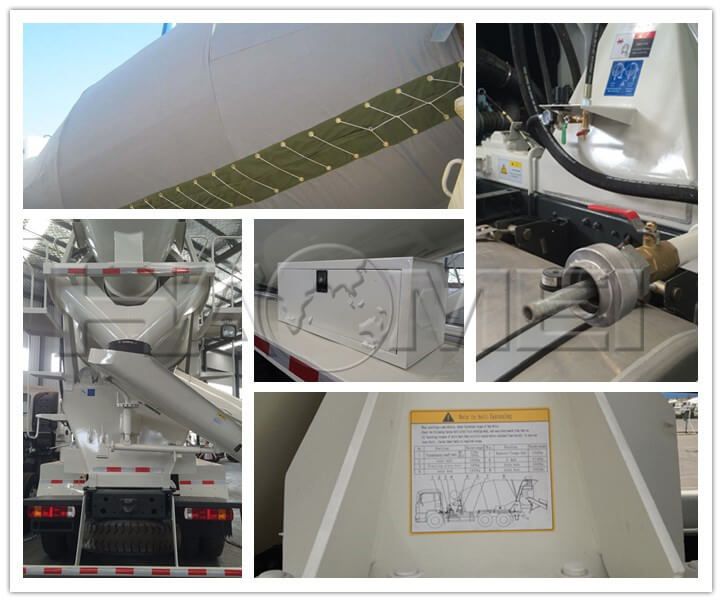

Features of HM9-D Concrete Mixer Truck

  • It is of light weight with a nondriving steer axle and composite plastic fenders.

  • Our cement and concrete mixer trucks are designed with our drivers in mind.

  • Automatic traction control and electronic stability programs put the control in your hands.

  • Imported original hydraulic system.

small concrete mixer trucks.jpg

The Technical Parameter of HM9-D Concrete Mixers

Model

HM9-D

Specification

Unit

Value

Mixing Capacity

9

Tank Volume

14.7

Feeding Speed

m³/min

≥3.5

Discharging Speed

m³/min

≥3

Residual Ratio of Discharging

%

≤0.5%

Water Supply System


Air pressure

Water Tank Volume

L

300

Overall Dimension

mm

9050*2496*3750

Chassis Model


HOWO

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

314

Max Speed

km/h

90

Engine Max Output Power

kw

276

Emission Standard


Euro Ⅲ

Rated Load

kgs

13500

Overall Weight

kgs

25000

Wheelbase

mm

3825+1350

Original source: https://www.concretebatchplanthm.com/product/hm9-d-truck-mounted-concrete-mixers.html

Tags: truck mounted concrete mixers     concrete transit mixer     buy concrete mixers
