HM12-D Concrete Mixer Lorry

Mixing Capacity :
12 m³
Tank Volume:
17.93 m³
Feeding Speed:
≥3.5 m³/min
Discharging Speed:
≥3 m³/min
Residual Ratio of Discharging:
≤0.5%

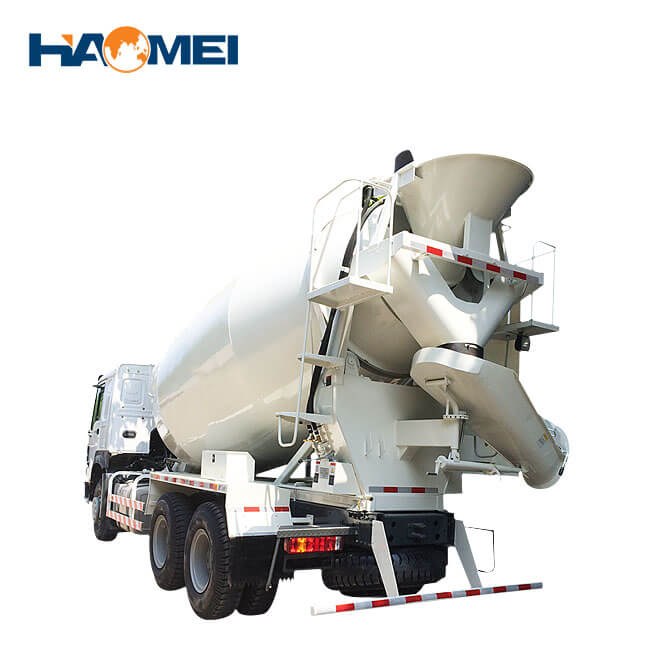

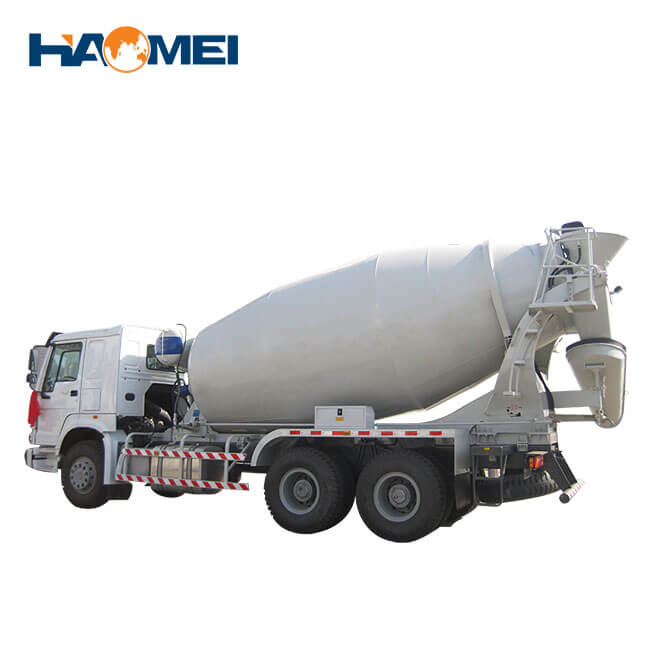

What Is HM12-D Concrete Mixer Lorry

HM 12-D concrete mixer is a special truck used to transport concrete/mortar for construction. Our lightweight mixers make light work of hauling concrete, mixing it all the way up to the job site.

Features of HM12-D Concrete Mixer Trucks

  • Light weight and large tank volume of 17.93 m3/h.

  • The mixing drum is made of high quality wear-resistant steel sheet.

  • Reasonable design of quality blades realize even mixing during the whole distance.

  • Our driver is the center of design. Multiple safety designs ensure your work done smoothly.

  • The perfect washing system, ensuring enough space all the time.

  • Flexible control system of the mixing tube brings high efficient work.

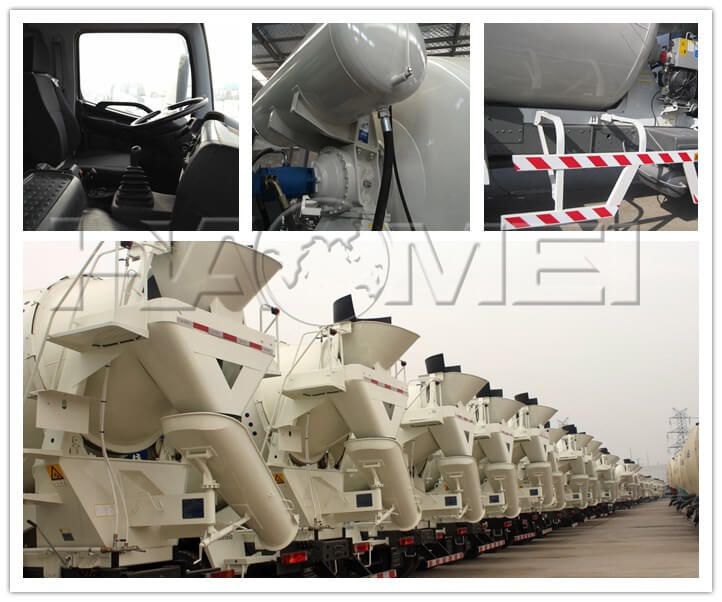

concrete truck for sale.jpg

The Specification of Concrete Mixer Truck For Sale

Model

HM12-D

Specification

Unit

Value

Mixing Capacity

12

Tank Volume

17.93

Feeding Speed

m³/min

≥3.5

Discharging Speed

m³/min

≥3

Residual Ratio of Discharging

%

≤0.5%

Water Supply System


Air pressure

Water Tank Volume

L

400

Overall Dimension

mm

9880*2496*3920

Chassis Model


HOWO

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

245

Max Speed

km/h

86

Engine Max Output Power

kw

340

Emission Standard


Euro Ⅲ

Rated Load

kgs

15000

Overall Weight

kgs

25000

Wheelbase

mm

4025+1350
