LB 1000 Hot Mix Asphalt Plant

Type:
Batch Mix / Hot Mix
Capacity:
80 T/H
Mixer:
1000-1200kg/batch
Hot Asphalt Temperature:
160℃(adjustable)
Cycling time:
45S

Why Choose LB1000 Hot Mix Asphalt Plant

LB1000 asphalt hot mix plant is a a very popular model in South Asia. Its capacity is 80T/h. The technical indicators of our asphalt concrete mixing plant are in line with the technical standards of the airport, national highway and expressway engineering.

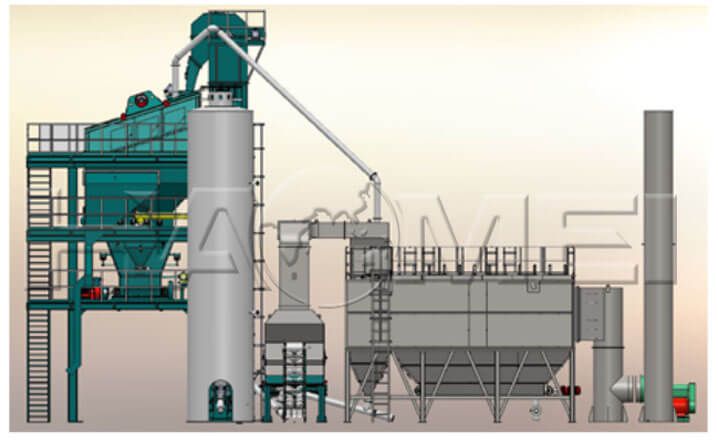

1b100 asphalt mixing plant drawing.jpg

3D Animation of Top Hot Mix Asphalt Plant at Work: 12 Big Main Parts

Features of Hot Mix Asphalt Plant for Sale

  • Operation and maintenance cost is very low.

  • Fully automatic control.

  • Emergency shutdown protection.

  • Environmentally friendly design, suitable for containers transport.

  • Flexible configuration according to customer requirements.

  • Uniquely designed physical anti-wear structure with a service life of 10-15 years.

  • Heat insulation for all part of the dryer, with galvanized steel.

  • lDynamic and precise control of the secondary metering technology used for bitumen weighing.

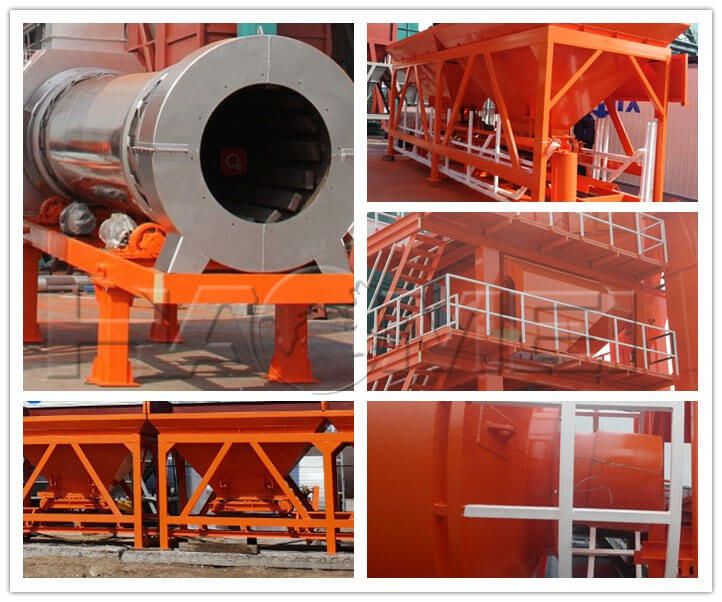

asphalt mixing plant manufacturers.jpg

The Main Parameters from Hot Mix Asphalt Plant Manufacturers-Haomei

Model

LB1000 Asphalt Batch Mix Plant

Type

Batch Mix / Hot Mix

Capacity

80 T/H (Standard Working Condition)

Mixer

1000-1200kg/batch

Weighing Precision

sand and gravel aggregate ±0.5%; powder ±0.25%; bitumen:±0.25%

Hot Asphalt Temperature

160℃(adjustable)

Cycling time

45S

Working Noise

≤85db(A)

Equipment operation reliability

≥85%

Temperature stability

Hot aggregate discharging temperature stability: ±9℃

Finished product material discharging temperature stability: ±6℃

Operation

Full Auto/Manual Operation

Installation Power

300kw

Electrical Design

220V/380V-50Hz

Documents

Chinese-English edition foundation drawing/ Electric Circuit Diagram; Operation Manual; Qualification Certificate
