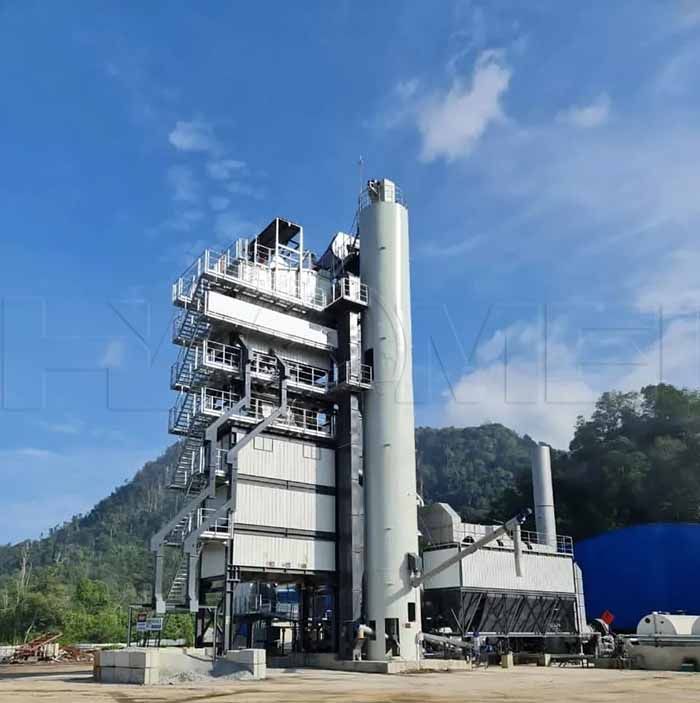

LB800 asphalt batch plant is a kind of stationary asphalt plant. The capacity of LB800 asphalt mixing plant is 60t/h, which is very suitable for concentrate engineering sites and urban road construction. Another large model is LB1000 asphalt hot mix plant.
Intelligent weight correction function.
Dual-machine & dual-control industrial system.
Double-shaft forced drive.

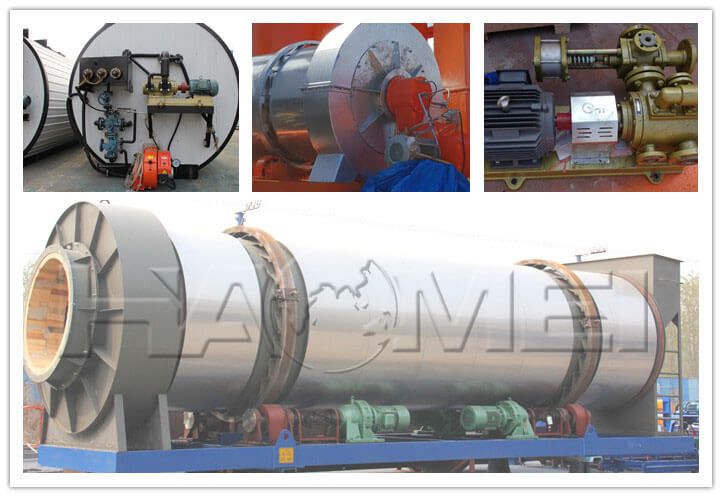

Heat insulation for all part of the dryer with galvanized steel.
Multiple safety designs and warning logo enables the stable working of the plant and the safety of the operator.
Powerful automatic control system: early warning production mode, mixing tank material detection and alarm function, hot material bin change binning and batching function.
Model | LB800 Asphalt Batch Mix Plant |
Type | Batch Mix / Hot Mix |
Capacity | 60 T/H (Standard Working Condition) |
Mixer | 750kg/batch |
Weighing Precision | sand and gravel aggregate ±0.5%; powder ±0.25%; bitumen:±0.25% |
Hot Asphalt Temperature | 160℃(adjustable) |
Cycling time | 45S |
Air Emissions | ≤20mg/Nm³ (bag dust collector) |
Working Noise | ≤85db(A) |
Equipment operation reliability | ≥85% |
Temperature stability | Hot aggregate discharging temperature stability: ±9℃ Finished product material discharging temperature stability: ±6℃ |
Operation | Full Auto/Manual Operation |
Voltage | 380V, 50 HZ,3 Phase; lighting to be 220 volt. |
Electrical Design | 220V/380V-50Hz |
Documents | Chinese-English edition foundation drawing/ Electric Circuit Diagram; Operation Manual; Qualification Certificate |
