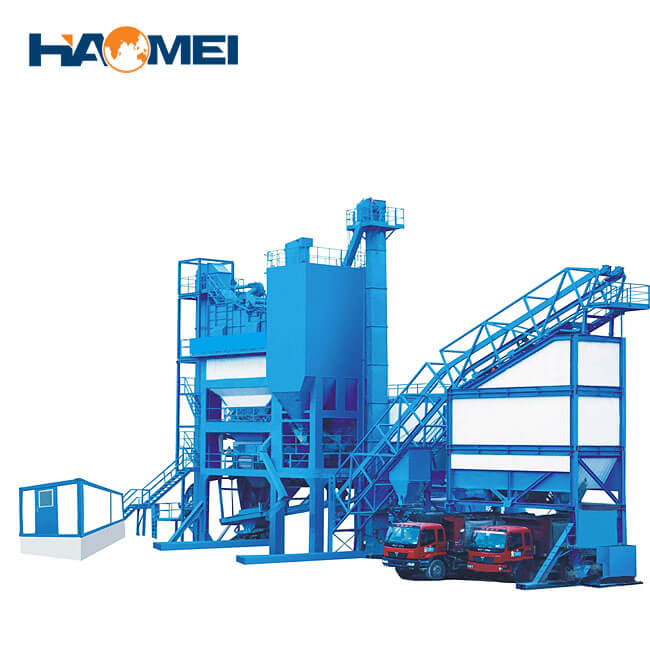

Mobile Asphalt Mixing Plant for Sale

Capacity:
80/120/160 t/h
Aggregate Batcher:
2.3m3*3
Asphalt Temperature:
120℃-180℃
Fuel Consumption:
Fuel Oil:5-7.5kg/t; Fuel Coal:13-15kg/t
Optional Components:
Water dust collector, Bag-house dust collector, Control room, Bitumen heating tank

What Is Mobile Asphalt Mixing Plant

Asphalt mixing plant, also called asphalt concrete mixing station, refers to a complete set of equipment for mass production of asphalt concrete. It can produce asphalt mixture, modified asphalt mixture and colored asphalt mixture.

The silo and mixing pot of mobile asphalt mixing plant have their own tires, which can be transferred with the construction site, and are suitable for county and township highways and low-grade highway projects.

Features of Mobile Asphalt Plant

  • Modular design is convenient for installation and conveyance.

  • The early warning mechanism of the aggregate hopper ensures continuous work.

  • There is emergency stop switch on belt conveyor

  • There is cleaning device inside and outsider belt to prevent the adhering aggregate to scuff belt.

  • Less land occupancy compared with other models.

asphalt mixing plant process.jpg

The Technical Parameter of Mobile Asphalt Plant for Sale

Model

LBY-1000

LBY-1500

LBY-2000

Capacity

80T/h

120T/h

160T/h

Coverall Power

Fuel Oil

54kw

54kw

Fuel Coal

54kw54kw

Aggregate Batcher

2.3m3*3

2.3m3*3

2.3m3*3

Storage Volume(T)

60

80

100

Finished Asphalt Storage Bin

10t

15t

20t

Weighing Accuracy(100%)

Bitumen

+0.2

+0.2

+0.2

Powder

+0.25

+0.25

+0.25

Aggregate

+0.5

+0.5

+0.5

Asphalt Temperature

120℃-180℃

Fuel Consumption

Fuel Oil:5-7.5kg/t; Fuel Coal:13-15kg/t

Optional Components

Water dust collector, Bag-house dust, collector, Control room, Bitumen heating tank
