HBTS40-12-82R Diesel Concrete Trailer Pump

Concrete output:
40/33 m3/h
Concrete pumping pressure:
12/7.6 MPa
Distribution valve type:
Open circuit
Circuit type:
Open circuit
Total weight :
4500 kg

What Is HBTS40 Concrete Trailer Pump

As a main model at aboard, HBTS40 diesel concrete trailer pump is popular among dozens of countries like Philippines, Uzbekistan, Ethiopia, Vietnam, Indonesia, Kenya, Brazil, Egypt, Fiji, Nigeria,etc. Its concrete output is 40 m3/h, an ideal choice for high buildings and the places where the vehicles cannot reach.

Features of Concrete Trailer Pump for Sale

  • Hydraulic Hose is Italy Manuli.

  • Electric elements are from France Schnider brand.

  • Sealing is of American Parker brand.

  • Free switch of high and low voltage, meeting different construction requirements.

  • Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler.

  • Simplest electric control system with fewest element quantities, bringing the highest reliability.

  • The hopper and S valve have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

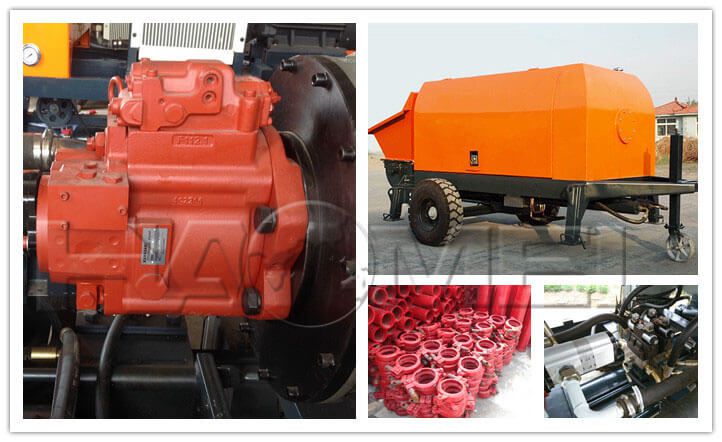

trailer concrete pump.jpg

The Technical Parameter of Trailer Pump for Sale

Items

Units

Parameters

Performance of Machine

Max theo. concrete output (L./H.)

m3/h

40/33

Max.concrete pumping pressure (H. /L.)

MPa

12/7.6
Distribution valve type
S Valve

Concrete cylinder diameter×stroke

mm

Ф180×1200

Hopper capacity×feeding height

L×mm

400×1100

Outlet diameter

mm

Ф150

Engineering power

kW

82(Deutz)

Rotate speed

r/min

2100

Hydraulic system

Circuit type


Open circuit

Pumping system pressure

MPa

31.5

Mixing system pressure

MPa

6-8

Capacity of oil tank

L

370

The biggest transportation

m

180/600

Other parameters

Max. aggregate diameter

mm

40

Inside diameter of delivering pipe

mm

Ф125 (specially for 20mm aggregate)

Dimensions:length×width×height

mm

5000×1850×1700

Total weight

kg

4500
