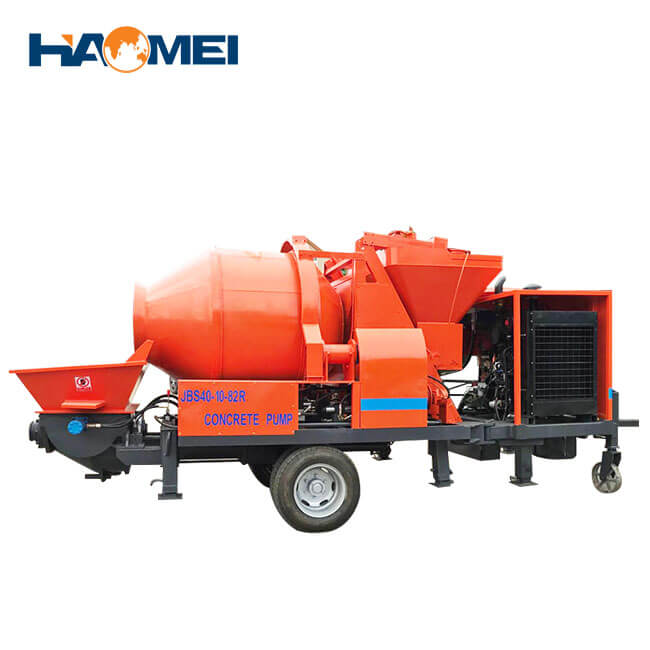

JBS40-10-82R Concrete Mixing Pump

Concrete output :
40 m3/h
Mixer rated feed capacity:
0.56 m3
Mixer rated discharge capacity:
0.35 m3
Concrete pumping pressure:
10 MPa
Distribution valve type:
S Valve

What Is Concrete Mixing Pump

Concrete mixing pump is the combination of concrete mixer and concrete pump, which can help save a lot of cost. It is widely applicable in house building, bridge and tunnel construction etc, which can realize continuous concrete pumping under high pressure along the pipelines. Thus, concrete mixer machine with pump is well-received by global users.

Features of JBS40-10-82R Concrete Mixer Pump

  • Double open hydraulic loops with two pumps makes the whole hydraulic system much simpler and reliable.

  • Hydraulic system has safe relief protection.

  • Cone sealing of all pipes make the pipe joints seal reliably.

  • Simplified electric control system with less element quantity improves the reliability.

  • Reasonable design of the key force components like hopper and S valve to enable them have good rigidity to avoid the phenomenon of hopper distortion and S valve breakage.

concrete mixer pump for sale.jpg

The Technical Parameter of Concrete Mixer Pump For Sale

Items

Units

Parameters

Whole performance of machine

Max. theo. concrete output

m3/h

40

Mixer rated feed capacity

m3

0.56

Mixer rated discharge capacity

m3

0.35

Max.concrete pumping pressure

MPa

10
Distribution valve type
S Valve

Concrete cylinder diameter×stroke

mm

Ф160×1000

Hopper capacity

L

400

Outlet diameter


mm

Ф125

Power system

Diesel engine model


Deutz

Electrical engineering power

kW

82

Rotate speed

r/min

2300

Winding motor power

kw

5.5

Stir the motorPower

kw

4.5

Water pump motor power

kw

0.55

Hydraulic system

Circuit type


Open circuit

Pumping system pressure

MPa

31.5

Mixing system pressure

MPa

6

Capacity of oil tank

L

350

The biggest transportation is away from vertically (/Level)

m

150/600

Other parameters

Max. aggregate diameter

mm

Scree: 20 30

Max. aggregate diameter

mm

60mm

Inside diameter of delivering pipe

mm

Ф125

Dimensions:length×width×height

mm

6000x2300x3150

Total weight

kg

5800
