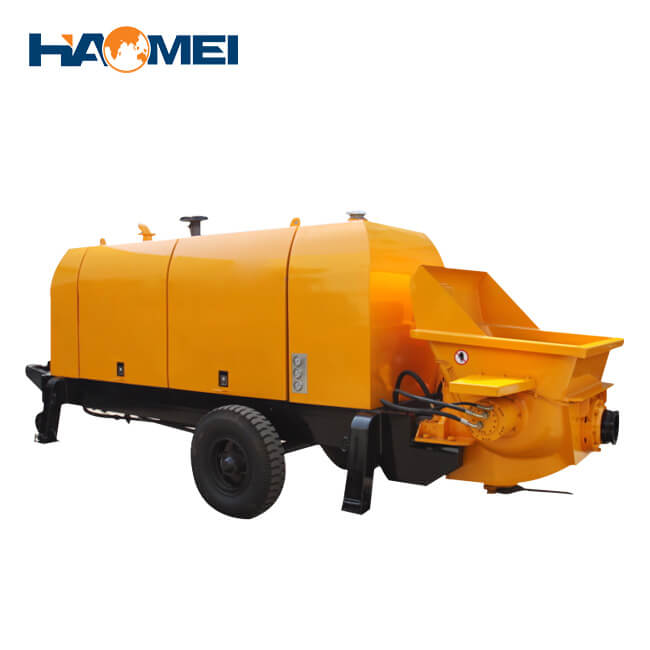

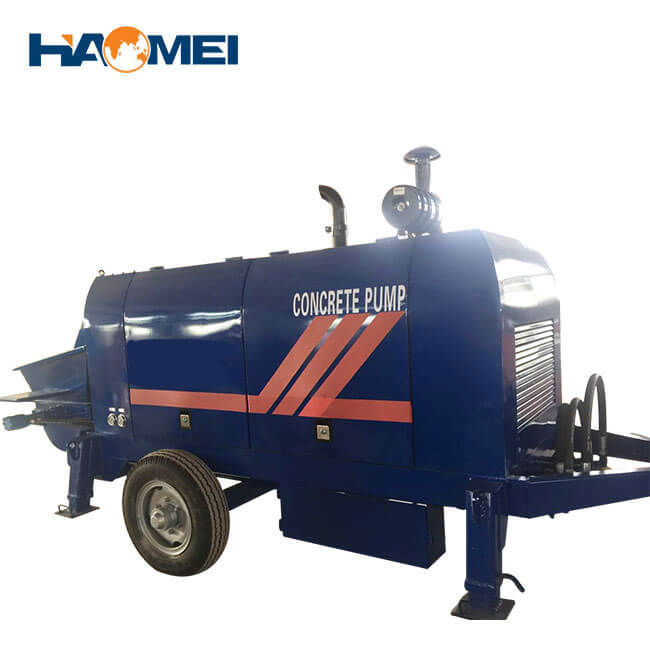

For HBTS50-12-75 Trailer mounted concrete pump, Haomei Machinery makes multiple improvements in hydraulic system, electrical control system, mechanical system, lubrication system and cooling system, making it step into international level. It is very popular in dozens of countries like Philippines, Uzbekistan, Ethiopia, Vietnam, Indonesia,etc.
Automatic switch of trailer pump for sale
Cone sealing of all pipes make the pipe joints seal reliably.
Double open hydraulic loops with two pumps, makes the whole hydraulic system much simpler and more reliable.
The wire remote equipment is convenient for operation far away.
The hydraulic circuit ensures all the parts get lubrication.
The radiator equipment makes the working oil temperature of hydraulic system below 70℃.
Items | Units | Parameters | |
| HBTS50-12-75 | |||
Whole performance of machine | Max. theo. concrete output (L./H.) | m3/h | 62/27 |
Max.concrete pumping pressure (H. /L.) | MPa | 12/7.2 | |
| Distribution valve type | S Valve | ||
Concrete cylinder diameter×stroke | mm | Ф180×1300 | |
Hopper capacity×feeding height | L×mm | 400×1420 | |
Outlet diameter | mm | Ф150 | |
Electrical engineering power | kW | 75 | |
Rotate speed | r/min | 1480 | |
Hydraulic system | Circuit type | Open circuit | |
Pumping system pressure | MPa | 31.5 | |
Mixing system pressure | MPa | 6-8 | |
Capacity of oil tank | L | 370 | |
The biggest transportation is away from vertically (/Level) | m | 150/600 | |
Other parameters | Max. aggregate diameter | mm | Slick scree: 40/50 |
| Inside diameter of delivering pipe | mm | Ф150-125 | |
Dimensions：length×width×height | mm | 5200×2000×2260 | |
Total weight | kg | 4500 | |
