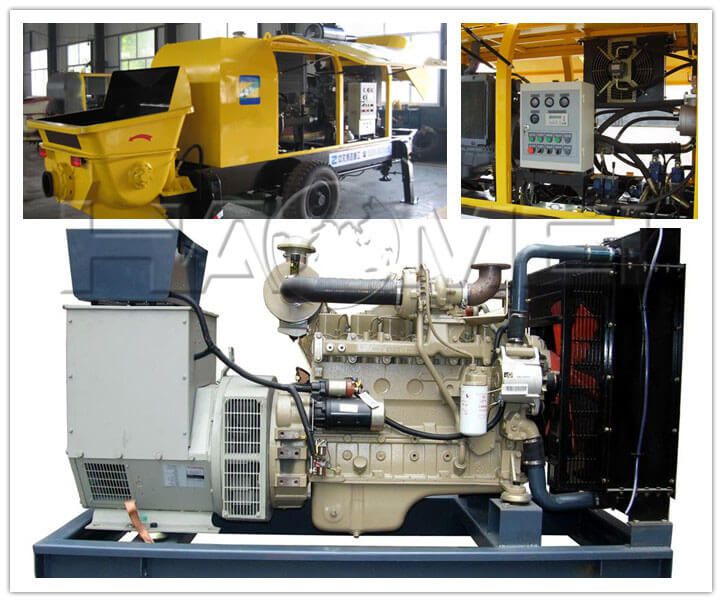

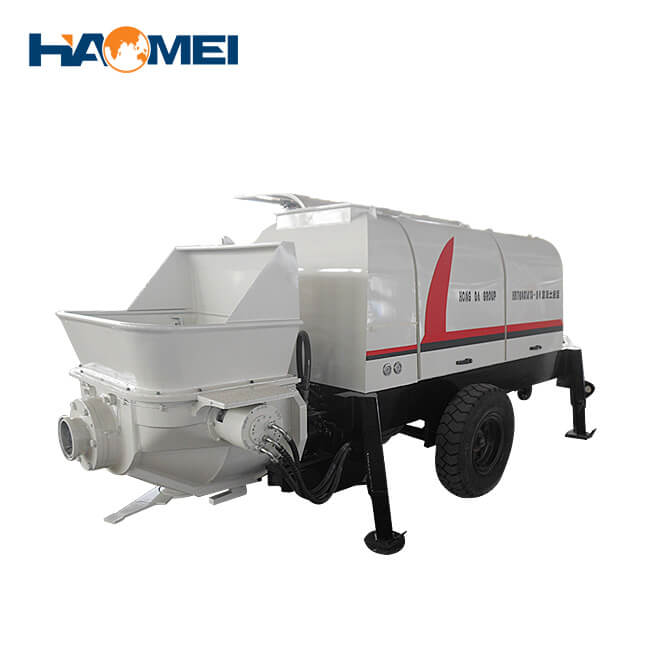

Haomei Pump trailer adopts the popular S valve with farther conveying distance. It also has the function of high and low voltage switching to meet different construction requirements. Simplified hydraulic system and electrical control system realize more stable function and simpler operation.
Free switch of high and low voltage.
Hydraulic valves is from Beijing Huade(Chinese best brand).
Hydraulic Hose is Italy Manuli,
Electric elements are from france Schnider brand.
PLC control is of Japanese OMRON brand.
Specification | Unit | Value |
Theory Concrete Output(Low / High Pressure) | m3/h | 60 |
Concrete Pressure (Low / high pressure) | Mpa | 13/7.4 |
Hydraulic system pressure | Mpa | 32 |
Rotation speed | r/min | 1480 |
High / low pressure switch | Yes | |
Distribution valve | S | Valve |
Pumping cylinder diameter/ Stroke | mm | 195/1500 |
Main oil pump discharge | ml/r | 110 |

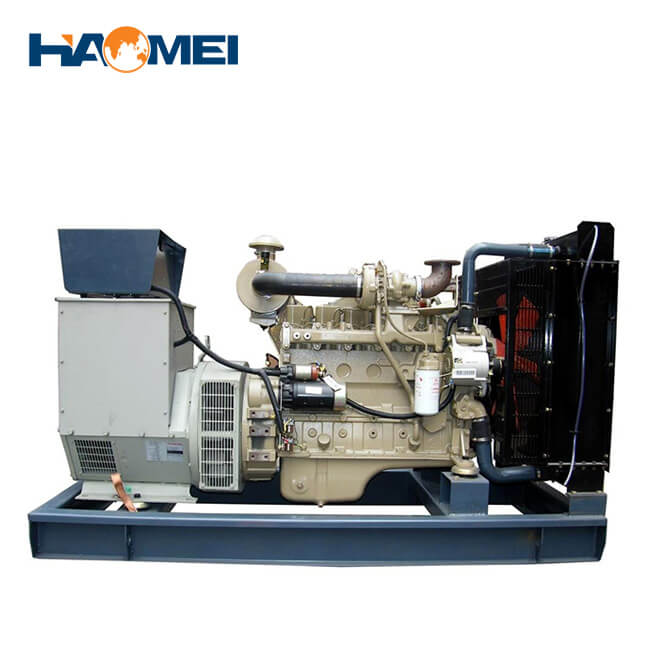

Diesel engine | kw | 112 |
Voltage/ Frequency | V/Hz | 380/50 |
Hydraulic tank volume | L | 400 |
Height of adding material | mm | 1355 |
Hopper volume | m3 | 0.8 |
Total mass | kg | 5800 |
Concrete slump | mm | 120-230 |
Aclinic Delivery distance | m | 1200 |
Theory vertical pumping height | m | 250 |
Dimension: L*W*H | mm | 6240*2110*2550 |
