HM6-D Mini Concrete Truck

Mixing Capacity :
6 m³
Tank Volume:
9.96 m³
Feeding Speed:
≥3 m³/min
Discharging Speed:
≥1.5m³/min
Residual Ratio of Discharging:
≤0.5%

What Is HM6-D Mini Concrete Truck

HAOMEI serial Concrete Truck Mixer is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the job site. It can effectively delay concrete coagulations and avoid concrete stratification and education,ensuring construction quality and speed.

Application of HM6-D Concrete Mixer Trucks

Our concrete trucks have many models, of which capacity is 8m3, 9m3, 10m3, 12m3, 14m3 and 16m3. It is especially suitable for mass concreting works like construction of canals, bridges, highways, dams, multistoried & industrial buildings, factories, and airports.

Features of Mixer Truck

  • High-intensity drum material, featuring better wear-resistance and long service life.

  • Imported original hydraulic system.

  • Optimized mixing blades, low material residue.

  • All the details have been tested to ensure its best performance.

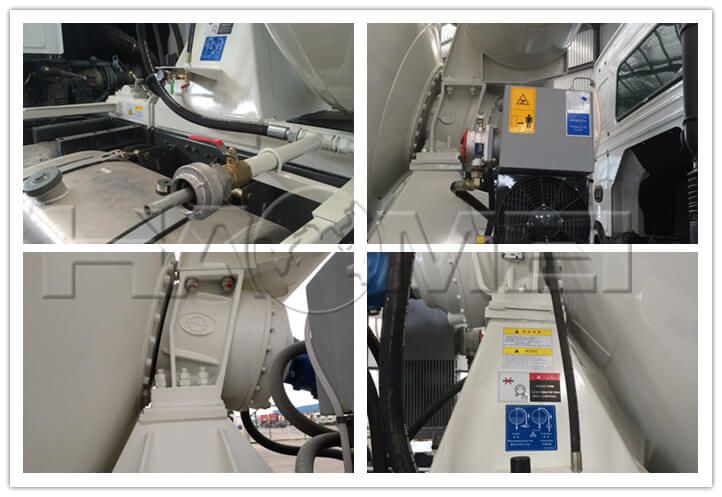

mixer truck parts.jpg

The Technical Parameter of HM6-D Transit Mixer

Model

HM6-D

Specification

Unit

Value

Mixing Capacity

6

Tank Volume

9.96

Feeding Speed

m³/min

≥3

Discharging Speed

m³/min

≥1.5

Residual Ratio of Discharging

%

≤0.5%

Water Supply System


Air pressure

Water Tank Volume

L

260

Overall Dimension

mm

8450*2496*3835

Chassis Model


Steyr

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

297

Max Speed

km/h

75

Engine Max Output Power

kw

247

Emission Standard


Euro Ⅲ

Rated Load

kgs

12600

Overall Weight

kgs

25000

Wheelbase

mm

3225+1350
