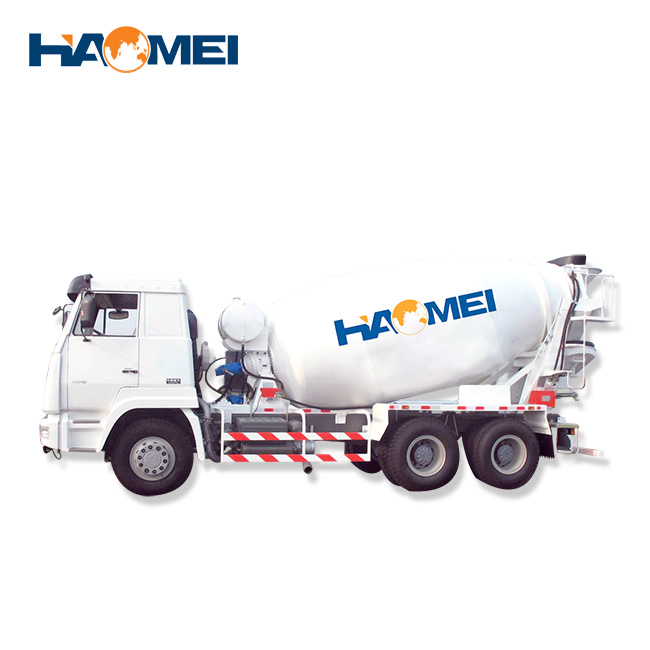

HM8-D transit mixer is composed of the chassis, tanks, piping systems, automatic unloading devices and other components. It is used to transport concrete / mortar from concrete batching plant directly to the job site. It can effectively delay concrete coagulations and avoid concrete stratification and education.
1. Two respectively controlled gas chambers for different functions.
2. Optimized mixing blades for less residue.
3. Imported original hydraulic system.
4. The driver is the center of our design. The driving cabin is comfortable and roomy.
Model | HM8-D | |
Specification | Unit | Value |
Mixing Capacity | m³ | 8 |
Tank Volume | m³ | 12.8 |
Feeding Speed | m³/min | ≥3 |
Discharging Speed | m³/min | ≥1.5 |
Residual Ratio of Discharging | % | ≤0.5% |
Water Supply System | Air pressure | |
Water Tank Volume | L | 260 |
Overall Dimension | mm | 8715*2496*3800 |
Chassis Model | HOWO | |
Clutch | φ | φ430 Monolithic dry type |
Min Ground Clearance | mm | 314 |
Max Speed | km/h | 90 |
Engine Max Output Power | kw | 276 |
Emission Standard | Euro Ⅲ | |
Rated Load | kgs | 13500 |
