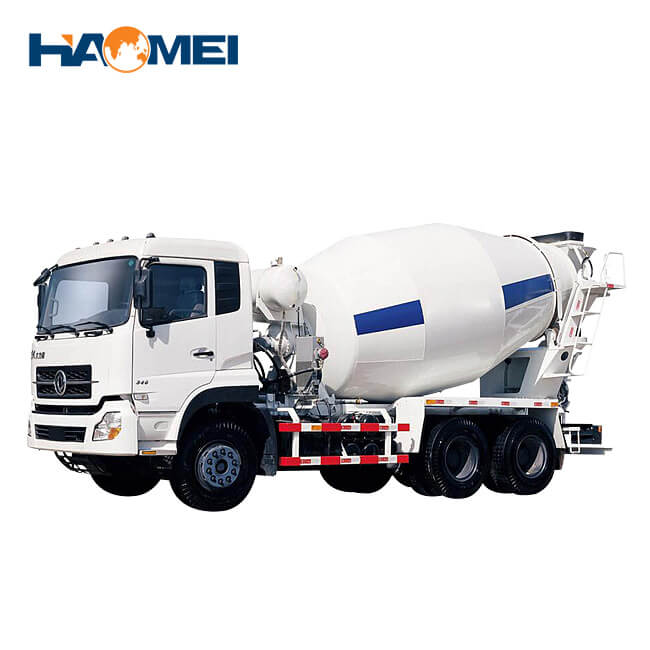

HM14-D Ready Mix Truck

:

HM14-D ready mix truck is light weight and of large tank volume of 20.1 m3/h. It is widely used for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports.

Features of HM14-D Mobile Concrete Mixer For Sale

  • Imported original hydraulic system, bringing powerful function.

  • Reasonable design of quality blades realize even mixing during the whole distance.

  • Our driver is the center of design. Multiple safety designs ensure your work done smoothly.

  • The fully enclosed device adopts the rotary sealing technology to seal the inlet and outlet of the mixer truck,freeing from water evaporation, mortar stratification, material spillage,etc.

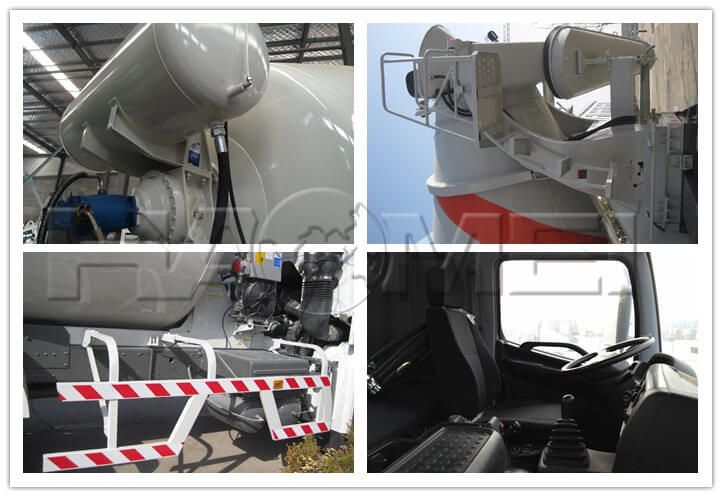

truck mixer.jpg

The Specification of HM14-D Concrete Mixer Truck

Model

HM14-D


Specification

Unit

Value

Mixing Capacity

14

Tank Volume

20.1

Feeding Speed

m³/min

≥3.5

Discharging Speed

m³/min

≥3

Residual Ratio of Discharging

%

≤0.5%

Water Supply System


Air pressure

Water Tank Volume

L

400

Overall Dimension

mm

10300*2496*3920

Chassis Model


HOWO

Clutch

φ

φ430 Monolithic dry type

Min Ground Clearance

mm

245

Max Speed

km/h

90

Engine Max Output Power

kw

340

Emission Standard


Euro Ⅲ

Rated Load

kgs

16000

Overall Weight

kgs

31000

Wheelbase

mm

1800+3200+1350
