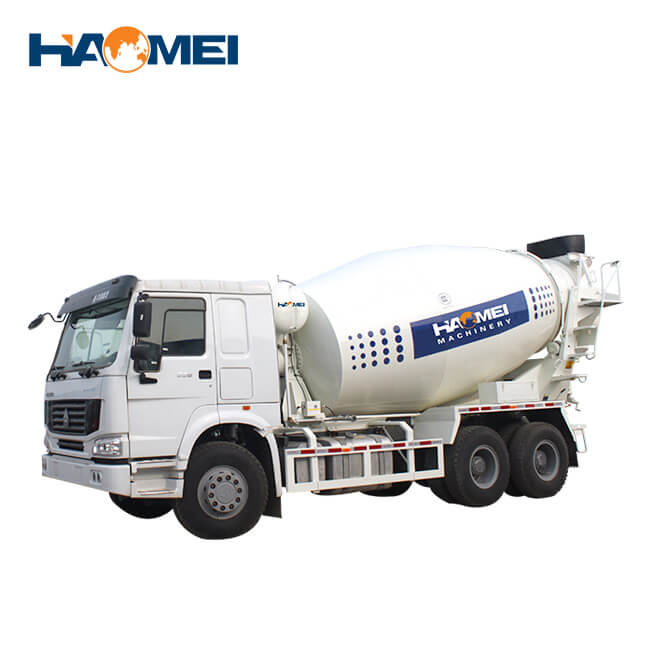

Haomei Machinery is a professional manufacturer of concrete mixer truck. HM16-D is our largest one with tank volume of 24.1 m3/h. It can effectively delay concrete coagulations and avoid concrete stratification. Fast feeding and discharging speed greatly shorten the whole process.
The mixing drum is made of high quality wear-resistant steel sheet.
Reasonable design of quality blades realize even mixing during the whole distance.
The perfect washing system, ensuring enough space all the time.
Flexible control system of the mixing tube brings high efficient work.
The fully enclosed device adopts the rotary sealing technology to seal the inlet and outlet of the mixer truck,freeing from water evaporation, mortar stratification, material spillage,etc.
Model | HM16-D | |
Specification | Unit | Value |
Mixing Capacity | m³ | 16 |
Tank Volume | m³ | 24.1 |
Feeding Speed | m³/min | ≥3.5 |
Discharging Speed | m³/min | ≥3 |
Residual Ratio of Discharging | % | ≤0.5% |
Water Supply System | Air pressure | |
Water Tank Volume | L | 400 |
Overall Dimension | mm | 10850*2496*3980 |
Chassis Model | HOWO | |
Clutch | φ | φ430 Monolithic dry type |
Min Ground Clearance | mm | 245 |
Max Speed | km/h | 90 |
Engine Max Output Power | kw | 340 |
Emission Standard | Euro Ⅲ | |
Rated Load | kgs | 16600 |
Overall Weight | kgs | 31000 |
Wheelbase | mm | 1800+3600+1350 |
